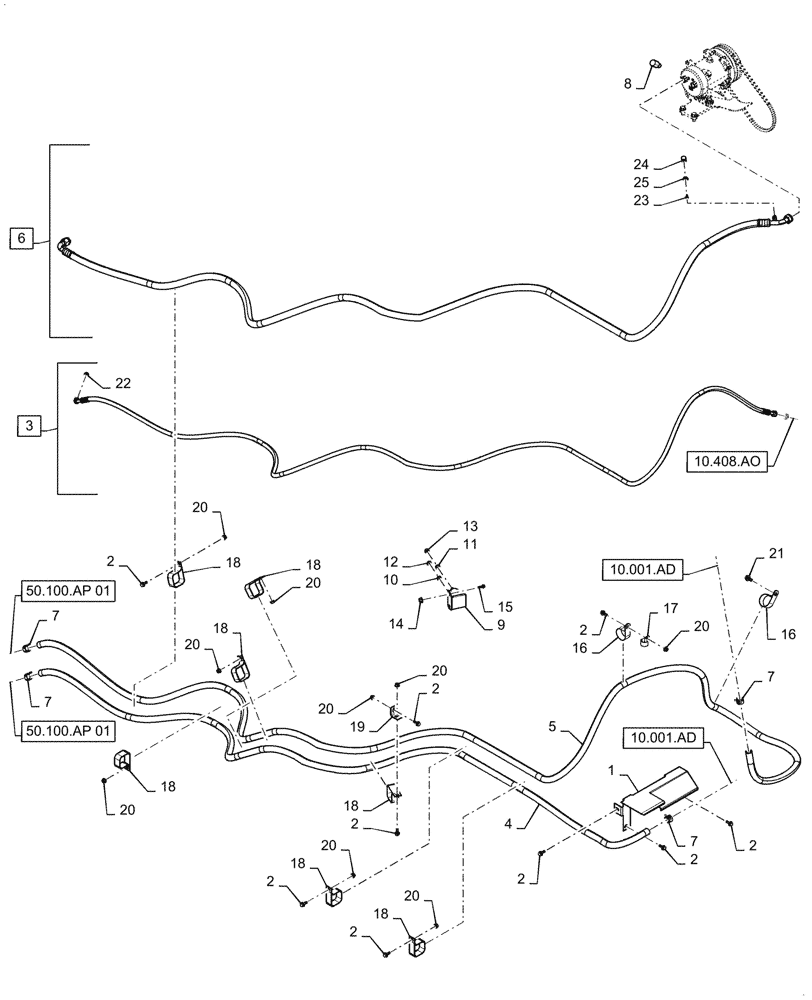

Запчасти Case IH 5088 (50.200.AB) - ENGINE AIR COMPRESSOR HOSE ASSY. (50) - CAB CLIMATE CONTROL

1

87345873

SHIELD

Starter

1шт.

2

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

9шт.

3

87564596

HOSE ASSY.

Cab to A/C Condensor, Incl 22

1шт.

4

87352176

HEATER HOSE

Hi-Temperature

1шт.

5

87687485

HEATER HOSE,15.50 mm ID x 6280.00 mm

1шт.

6

87754220

HOSE ASSY.

A/C Suction, Incl 23 - 25

1шт.

7

1954736C1

HOSE CLAMP,#24

4шт.

8

369798A2

SWITCH

A/C High Pressure

1шт.

9

87406968

SOLENOID SWITCH

Start

1шт.

10

492-11010

LOCK WASHER,#10

2шт.

11

492-11031

LOCK WASHER,5/16"

2шт.

12

225-14210

NUT,#10-32

2шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

15

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

16

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

2шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

18

1301387C2

CLIP

Coated Hose

7шт.

19

1301560C2

STIFFENER

Angle Bracket

1шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

9шт.

21

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

22

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

23

414083A1

VALVE

High Flow, Low Side Service Port

1шт.

24

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

High Flow, Low Side Service Port

1шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.
