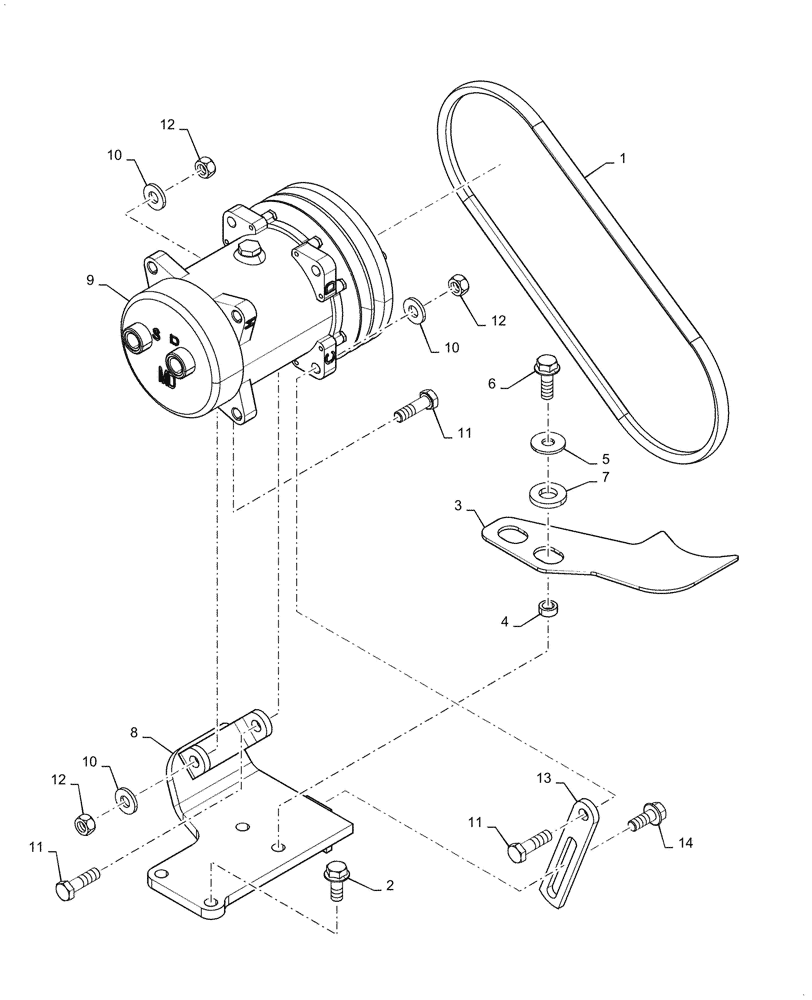

Запчасти Case IH 5088 (50.200.AA) - AIR COMPRESSOR & MOUNTING PARTS (50) - CAB CLIMATE CONTROL

1

87311867

V-BELT,12.7mm W x 940mm L

A/C Compressor

1шт.

2

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

3

84141599

MOUNT

Fan Pulley Scraper Plate

1шт.

4

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

2шт.

5

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

6

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

7

84287833

RUBBER WASHER

Isolator

2шт.

8

87311866

BRACKET

Compressor Mount

1шт.

9

86993462

AIRCOND. COMPRESSOR

12V, Double Groove

1шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

12

832-41410

NUT,M10 x 1.5, Cl 10

3шт.

13

87000300

BRACKET

Adjustment Brace

1шт.

14

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.
