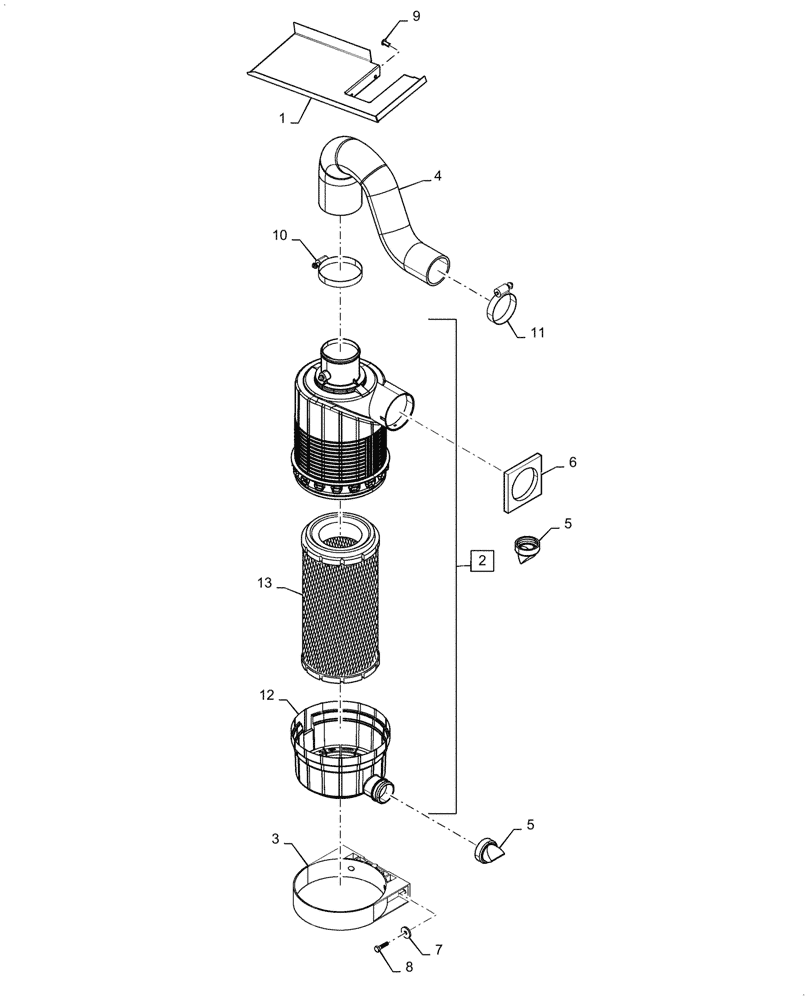

Запчасти Case IH 5088 (50.104.AQ) - CAB AIR FILTER (50) - CAB CLIMATE CONTROL

1

84221577

BRACKET

Blockoff, Start Serial: Y9G002601

1шт.

1

87755364

BRACKET

Blockoff, Serial Range: -Y9G002601

1шт.

2

84334657

AIR CLEANER

Filter Assy, Incl 12, 13

1шт.

3

84057675

CLAMP BRACKET

Filter

1шт.

4

84392697

AIR HOSE

Inlet

1шт.

5

9809800

DUST VALVE,1.93" ID x 2.24" OD

Blooper

2шт.

6

87651811

GASKET

Air Filter

1шт.

7

140041

WASHER,M8 x 28mm OD x 3mm Thk

2шт.

8

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

10

214-1556

HOSE CLAMP,#56, 3.06" - 4", Type F Worm, W/ Liner

1шт.

11

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

1шт.

12

47132327

COVER

Air Filter

1шт.

13

87682993

AIR FILTER,91mm ID x 164.5mm OD x 347.5mm L

1шт.
