Запчасти Case IH 5088 (50.104.AO) - AIR DUCTS & HOSES (50) - CAB CLIMATE CONTROL

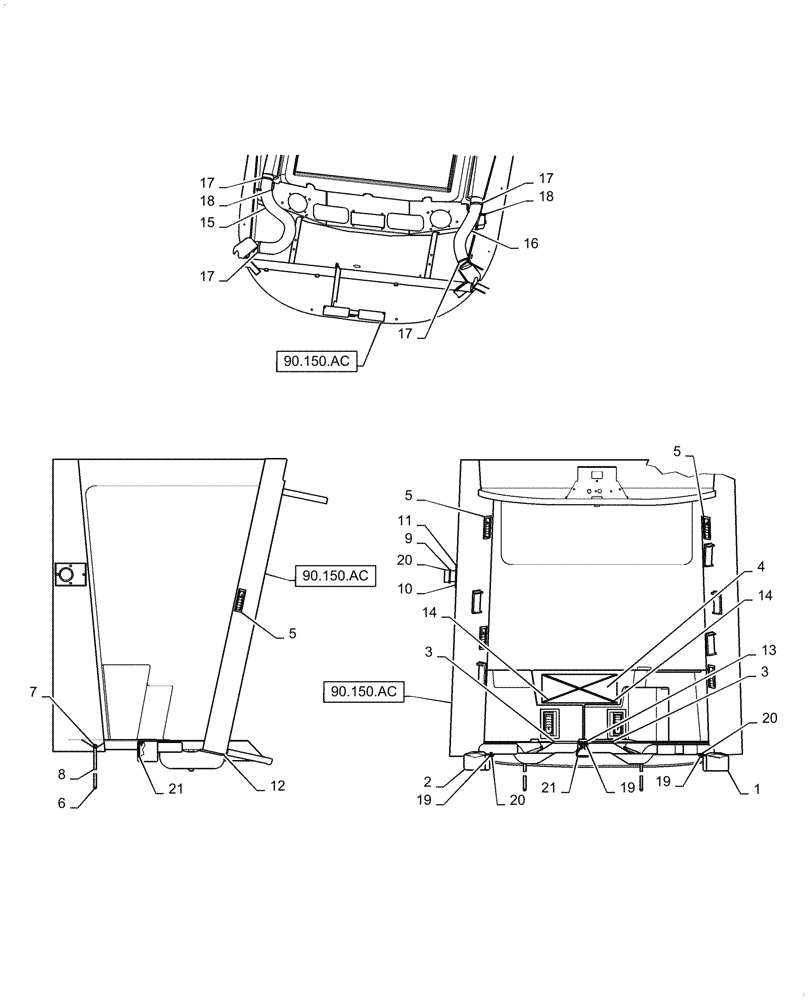

Схема запчастей Case IH 5088 - (50.104.AO) - AIR DUCTS & HOSES (50) - CAB CLIMATE CONTROL
90.150.ac
20
16
3
13
6
17
7
17
9
20
19
21
19
5
17
8
12
15
14
4
20
11
3
5
1
14
18
5
17
2
18
10
19
21
90.150.ac
90.150.ac

Артикул

Название

Примечание

Количество

1

129225A2

AIR DUCT

Left

1шт.

2

129227A2

AIR DUCT

Right

1шт.

3

129228A4

FOAM INSULATION

Duct Gasket

2шт.

4

120486A2

FILTER

Recirculation

1шт.

5

87281670

VENT

Fixed

11шт.

6

109239C2

CHECK VALVE

Condensate Drain Hose

2шт.

7

1250522C3

FITTING

Drain

2шт.

8

122116A1

HEATER HOSE,12.95 mm ID x 1524.00 mm

Condensate

2шт.

9

84124649

COVER ASSY

Air Intake

1шт.

10

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

11

84124720

GASKET,5mm Thk

Cover

1шт.

12

196542A2

FOAM INSULATION

Air Duct Gasket

2шт.

13

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

14

143486A1

SUPPORT

Filter

2шт.

15

383833A1

TUBE

Air Duct

1шт.

16

380524A1

HOSE,65.5mm ID x 545mm L

Air Duct

1шт.

17

58556C1

CABLE TIE

Strap

4шт.

18

1545944C1

SEAL

Edge Trim

2шт.

19

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

16шт.

20

353-42

PLUG

Cap

1шт.

21

84144090

GUIDE

Steering Hose

1шт.

Выбрано товаров: 21
