Запчасти Case IH 5088 (50.100.AP[02]) - AIR CONDITIONING WITH ATC (50) - CAB CLIMATE CONTROL

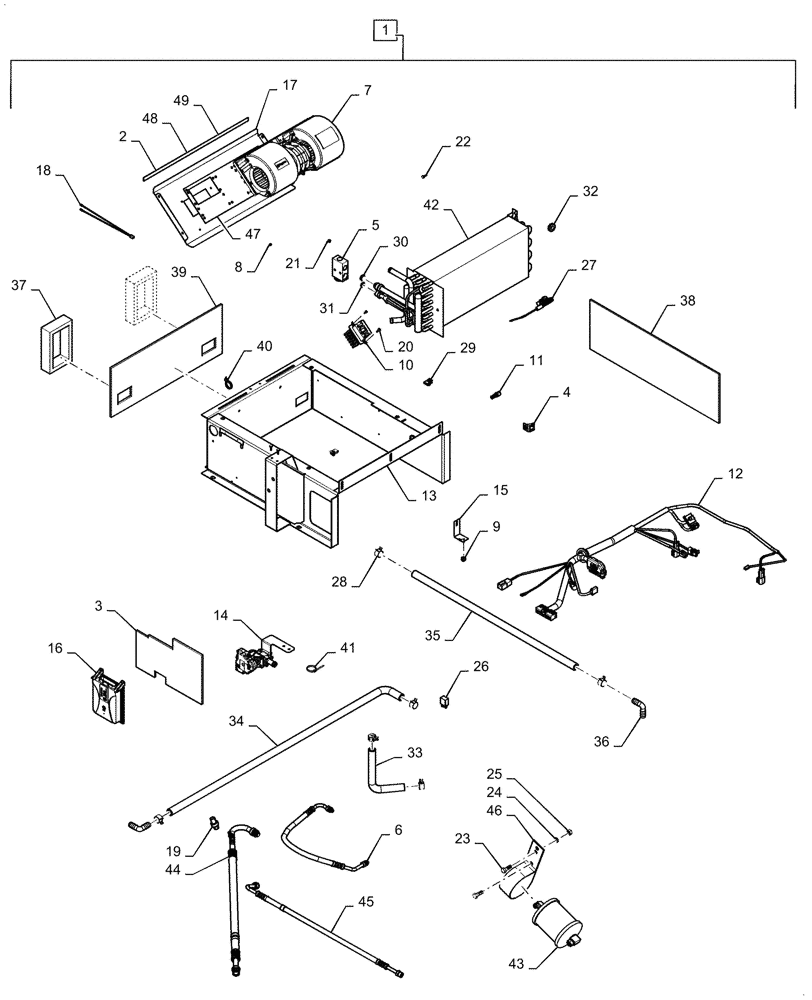

Схема запчастей Case IH 5088 - (50.100.AP[02]) - AIR CONDITIONING WITH ATC (50) - CAB CLIMATE CONTROL
31
11
21
26
28
18
27
35
22
9
17
23
41
25
3
1
34
2
29
45
47
7
46
5
4
43
20
19
38
10
14
42
30
13
37
40
49
33
16
15
12
39
36
32
24
8
44
48
6

Артикул

Название

Примечание

Количество

1

87673824

UNIT HEATER

HVAC Unit W/ ATC, Incl 2 - 49

1шт.

2

87333865

FOAM INSULATION

Motor

1шт.

3

87333847

FOAM INSULATION

Gasket

1шт.

4

87318294

CLIP

Sensor

1шт.

5

386535A1

VALVE

Expansion

1шт.

6

124912A2

HOSE

A/C, Evaporator To Dryer

1шт.

7

87663947

BLOWER,12 V

Assy

1шт.

8

44334

SCREW,Cross Pan Hd, M4 x 12

6шт.

9

231-14408

NUT,#8-32, GB

1шт.

10

87306706

TERMINAL CONNECTOR

Linear Blower Driver Module

1шт.

11

87454442

SENSOR

Thermistor

1шт.

12

87333848

WIRE HARNESS

A/C System

1шт.

13

87333857

BOX

A/C System

1шт.

14

87333840

HEATER VALVE,Water Control

1шт.

15

87351204

BRACKET

Sensor

1шт.

16

84143879

MODULE

ATC

1шт.

17

47362967

PLATE

Blower Mounting

1шт.

18

84598774

WIRE HARNESS

Jumper

1шт.

19

84419250

PRESSURE SWITCH

Low

1шт.

20

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

2шт.

21

87333919

CAPTIVE WASHER SCREW,Sl Hex, Tap, #10 - 32 x 3/8"

1шт.

22

281-54510

SELF-TAP SCREW,HWH, #10 - 24 x 5/8"

10шт.

23

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

87414866

RELAY,12V, 20A

1шт.

27

184720A2

SENSOR

Evap Temp

1шт.

28

1954736C1

HOSE CLAMP,#24

Heater Hose

6шт.

29

488837C1

SPRING NUT

U Clip

4шт.

30

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

31

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

32

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

1шт.

33

377547A1

HOSE,15.50 mm ID

Valve To Coil

1шт.

34

377551A1

HEATER HOSE,15.50 mm ID x 838.00 mm

Return

1шт.

35

1958774C1

HEATER HOSE

Valve

1шт.

36

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

37

124999A1

GASKET

Lower

2шт.

38

279230A2

INSULATOR

Foam

1шт.

39

279233A1

INSULATOR

Foam, Front

1шт.

40

702093C1

CABLE TIE

Push Mount

6шт.

41

377559A1

STRAP

Tie

2шт.

42

377560A1

CORE-COMPRESSOR

Coil

1шт.

43

1990758C2

RECEIVER-DRYER

A/C

1шт.

44

124913A2

HOSE

A/C, Evaporator To Bulkhead

1шт.

45

124914A2

Hose, A/C, Dryer To Cab

1шт.

46

377562A1

BRACKET

Receiver-Dryer

1шт.

47

84434934

GASKET

Blower

1шт.

48

377566A1

GASKET

Blower Mount

1шт.

49

377567A1

SEAL

Moisture

1шт.

Выбрано товаров: 49
