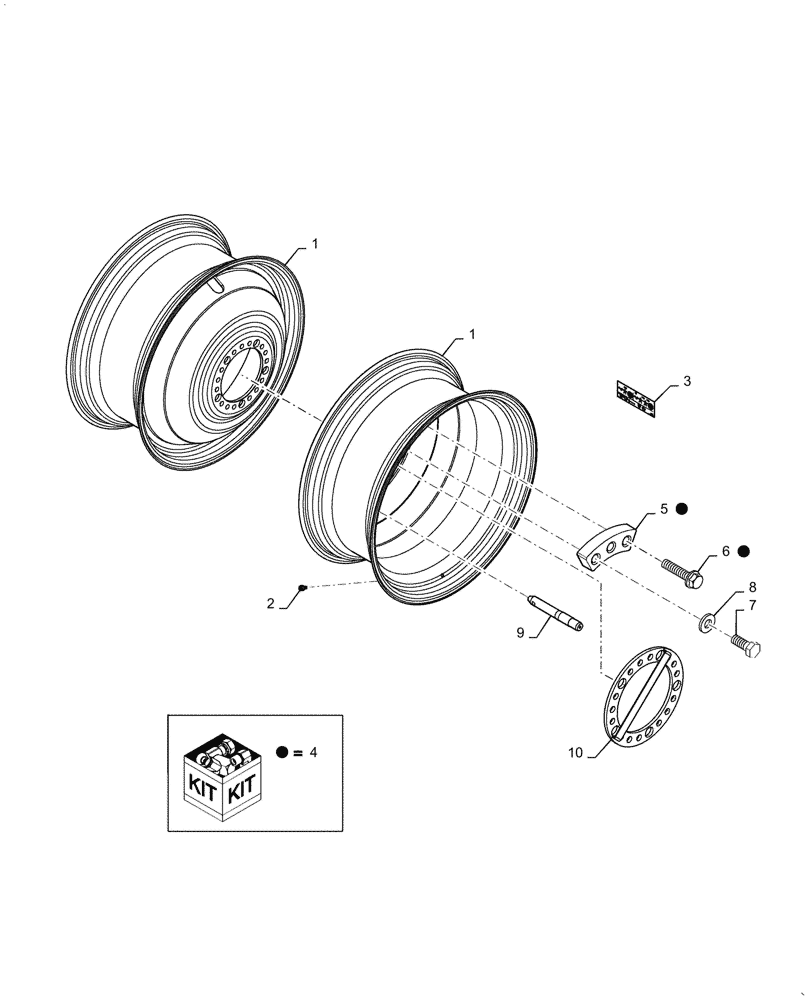

Запчасти Case IH 5088 (44.520.AB[02]) - VAR - 830019, 830002, 830121 - DUAL DRIVE WHEEL (44) - WHEELS

1

47615189

WHEEL ASSY

42 x DD18, Silver, VAR - 830019

4шт.

1

87386310

WHEEL ASSY

A38 X W18A Silver VAR 830002

4шт.

1

87386315

WHEEL ASSY.

42 x DD16, Silver, VAR - 830121

4шт.

2

395448

VALVE STEM

VAR - 830019, 830002, 830121

4шт.

3

47448362

WARNING DECAL

Wheel Torque, VAR - 830019, 830121

8шт.

3

87563205

DECAL

Wheel Torque VAR 830002

8шт.

4

47457484

SERVICE KIT

Fixation, VAR - 830019, Incl 5, 6, 10

1шт.

5

87327940

PLATE

Wheel Mount, VAR - 830019

10шт.

6

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

VAR - 830019

30шт.

7

87340028

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9

10шт.

8

87327481

WASHER,23mm ID x 37mm OD x 5mm Thk

Wheel Mount

10шт.

9

84349242

STUD

Wheel Starter, VAR - 830019

2шт.

10

87280385

SPACER

Ring, VAR - 830019

2шт.
