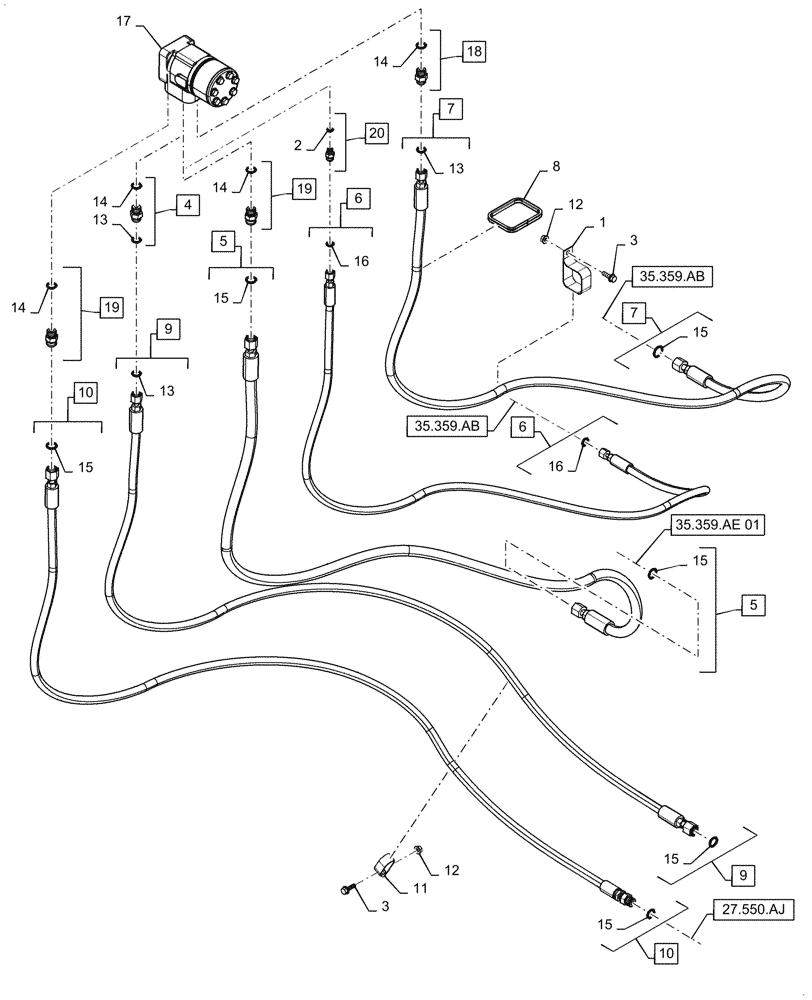

Запчасти Case IH 5088 (41.206.AA) - STEERING PUMP & HYDRAULIC LINE (41) - STEERING

1

1301387C2

CLIP

Coated Hose

1шт.

2

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

3

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

4

87672176

HYD CONNECTOR

Incl 13, 14

1шт.

5

87365366

HOSE ASSY.

Steering Return, Incl 15

1шт.

6

84126067

HOSE ASSY.

Steering High Pressure Signal, Incl 16

1шт.

7

84126068

HOSE ASSY.

Steering High Pressure Supply, Incl 13, 15

1шт.

8

324826A1

GROMMET

Flexible Edging

1шт.

9

87389503

HOSE ASSY.

Steering Work, Front Right Pressure, Incl 13, 15

1шт.

10

87389504

HOSE ASSY.

Steering Work, Front Left Pressure, Incl 15

1шт.

11

470375C1

CLAMP,1", Insul, 3/8" Bolt

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

17

87739493

PUMP

Steering, 320cc

1шт.

18

175170A1

ADAPTER

Incl 14

1шт.

19

9992305

HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB

Incl 14

2шт.

20

87744594

HYD CONNECTOR

Orifice, Incl 2

1шт.
