Запчасти Case IH 5088 (36.100.AK) - AIR COMPRESSOR LINES (36) - PNEUMATIC SYSTEM

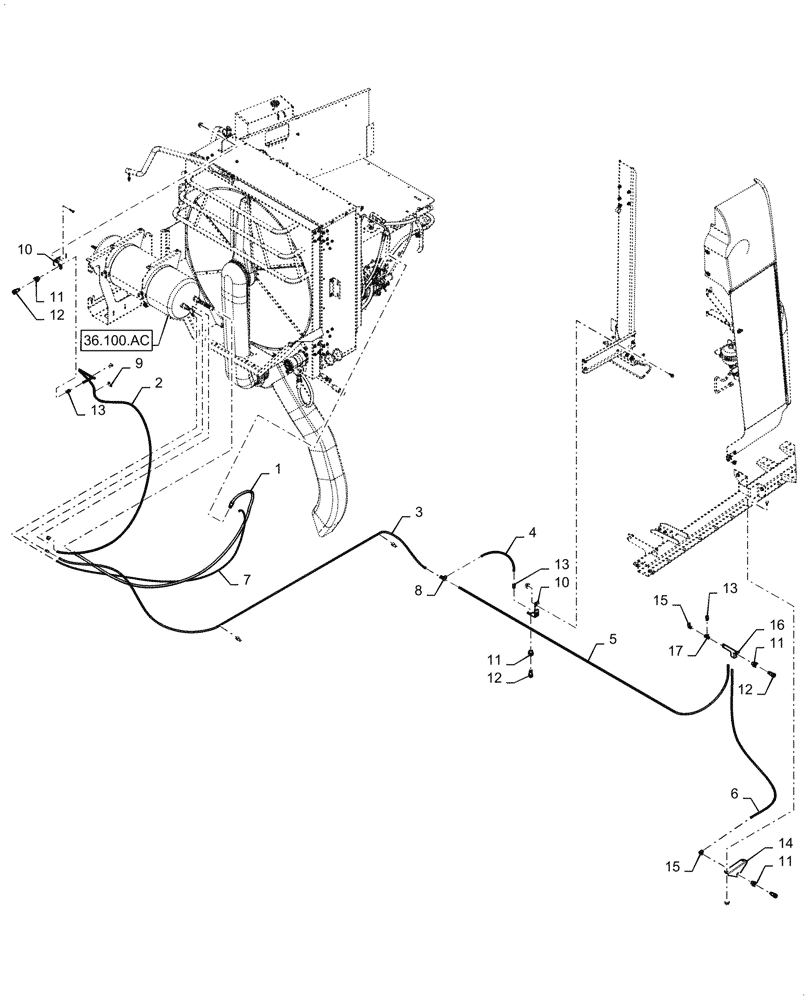

Схема запчастей Case IH 5088 - (36.100.AK) - AIR COMPRESSOR LINES (36) - PNEUMATIC SYSTEM
36.100.ac
4
13
5
11
12
11
2
12
17
12
10
10
16
6
15
15
13
8
11
7
13
1
14
11
3
9

Артикул

Название

Примечание

Количество

1

84176294

HOSE ASSY.

Braided, Compressor to Reservior

1шт.

2

84176420

HOSE

Reservior to Beacon Quick Disconnect

1шт.

3

84176520

TUBE,7.11 mm ID x 3610.00 mm

Reservior to Midship Tee

1шт.

4

84176521

HOSE

Midship Tee to Quick Disconnect

1шт.

5

84176522

TUBE,7.11 mm ID x 3220.00 mm

Midship Tee To Operator Platform Quick Disconnect

1шт.

6

84216054

HOSE

Operator Platform to Undercab Quick Disconnect

1шт.

7

84176524

HOSE

Reservoir to Governor

1шт.

8

84175931

HYD CONNECTOR

Push Connect, 3/8"

1шт.

9

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

4шт.

10

84154228

BRACKET

Quick Connect

1шт.

11

84171982

HYD CONNECTOR

Bulkhead, 1/4" NPTF

3шт.

12

84172049

COUPLING

Coupling, Quick Socket, 1/4"

3шт.

13

84162977

HYD CONNECTOR

Adapter, Push Connect, 3/8"

2шт.

14

84154232

BRACKET

Quick Connect, Undercab

1шт.

15

84162975

HYD CONNECTOR

Elbow, Push Connect, 3/8"

2шт.

16

84160233

BRACKET

Quick Connect, Operator Platform

1шт.

17

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

1шт.

Выбрано товаров: 17
