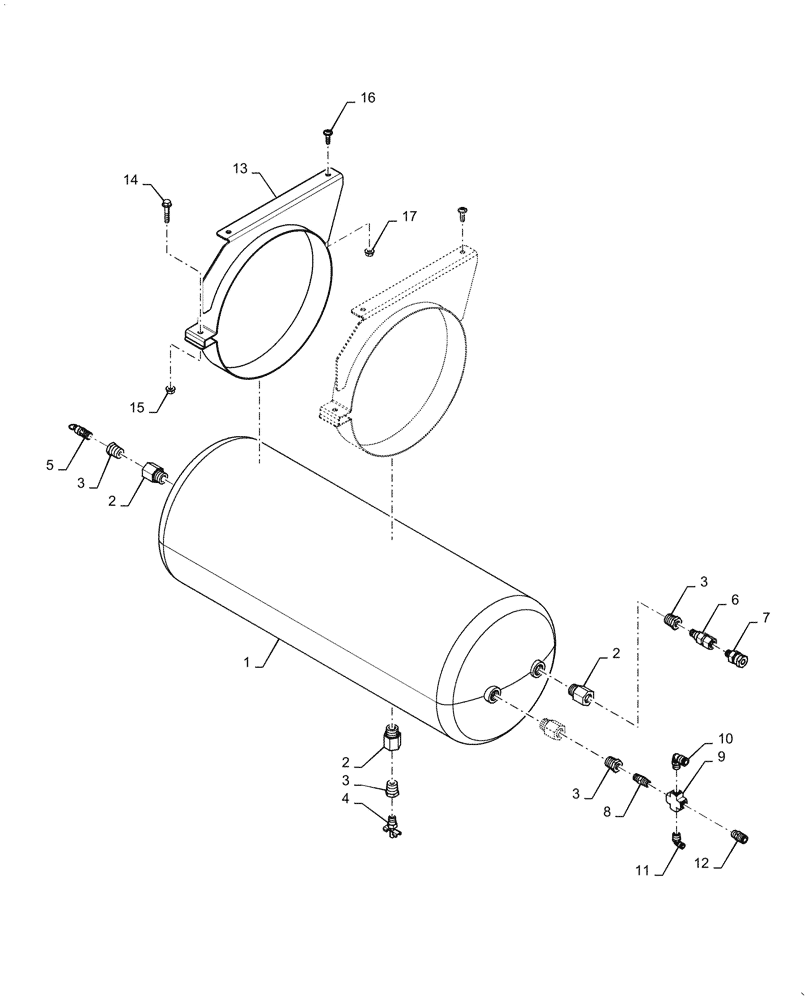

Запчасти Case IH 5088 (36.100.AC) - AIR RESERVOIR (36) - PNEUMATIC SYSTEM

1

84036945

AIR RESERVOIR

60L

1шт.

2

84171940

HYD CONNECTOR

Adapter, M22 x 1.5 to 1/2" NPTF

4шт.

3

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

4шт.

4

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

5

84994447

VALVE PRESSURE RELIE

Safety Blowoff

1шт.

6

84994444

VALVE SECTION

Non-Return, Air Compressor

1шт.

7

84173777

UNION

Swivel Adapter

1шт.

8

217-195

FITTING,1/4" - 18 Male NPTF x 1/4" - 18 Male NPTF

1шт.

9

84159156

CROSS,1/4" - 18NPT

1шт.

10

84162975

HYD CONNECTOR

Push Connect Elbow, 3/8"

1шт.

11

84162976

HYD CONNECTOR

Push Connect Elbow, 1/4"

1шт.

12

84162977

HYD CONNECTOR

Push Connect Adapter, 3/8"

1шт.

13

84144718

BRACKET

Reservior Mount

2шт.

14

87698834

BOLT,M8 x 48.1mm, Cl 10.9

2шт.

15

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

16

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
