Запчасти Case IH 5088 (36.100.AA) - AIR COMPRESSOR (36) - PNEUMATIC SYSTEM

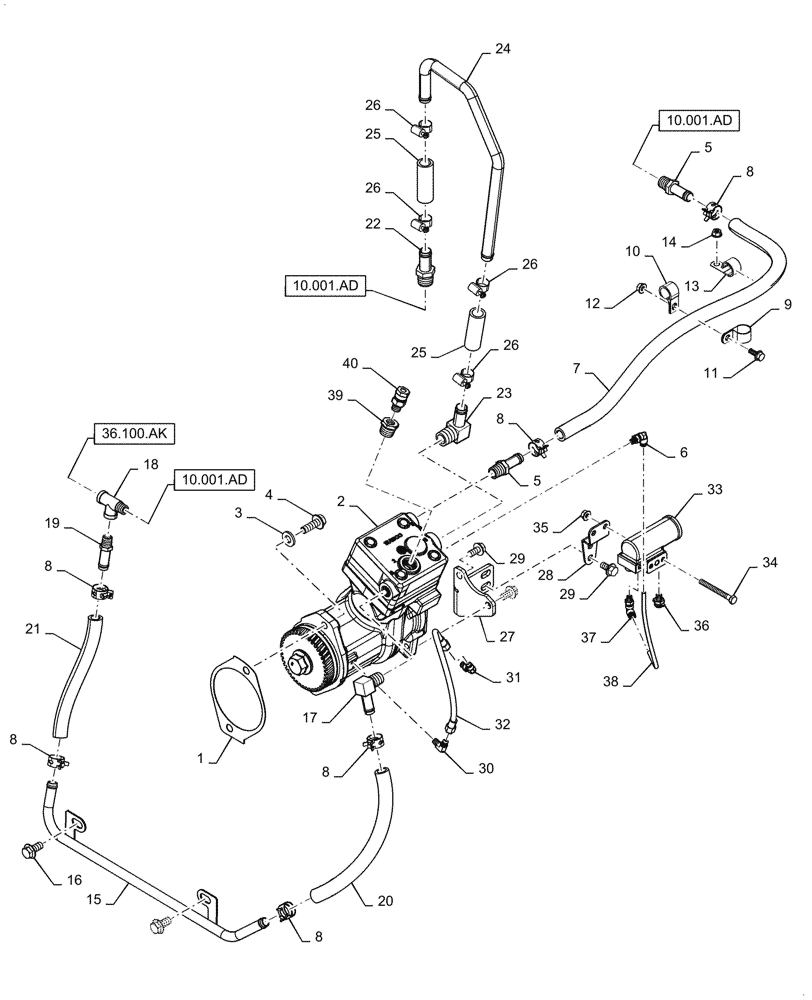

Схема запчастей Case IH 5088 - (36.100.AA) - AIR COMPRESSOR (36) - PNEUMATIC SYSTEM
36.100.ak
26
26
33
27
19
20
25
2
29
37
30
24
31
14
5
8
16
10
26
17
9
22
11
32
25
7
38
36
1
23
40
21
28
3
8
26
8
8
35
18
39
29
15
12
34
13
6
4
8
8
5
10.001.ad
10.001.ad
10.001.ad

Артикул

Название

Примечание

Количество

1

J940245

GASKET,1.27mm Thk

Engine

1шт.

2

87543702

AIR COMPRESSOR,Assembly

1шт.

3

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

4

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

5

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

2шт.

6

84162974

HYD CONNECTOR

Elbow, Push Connect, 1/4"

3шт.

7

1958774C1

HEATER HOSE

Supply

1шт.

8

1954736C1

HOSE CLAMP,#24

6шт.

9

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

10

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

13

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

15

87543684

HYD TUBE

Heater

1шт.

16

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

17

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

18

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

1шт.

19

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

1шт.

20

1958775C1

LINING

Hi-Temp Hose, Return

1шт.

21

1975734C1

HEATER HOSE,15.50 mm ID x 250.00 mm

Supply

1шт.

22

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

1шт.

23

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

24

87546323

HYD TUBE,19.05 mm OD x 323, 168 mm L

Air Admission

1шт.

25

87546324

HOSE,19.05 mm ID x 75.00 mm, SAE J20R3

Air Admission

2шт.

26

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

4шт.

27

87543698

BRACKET

Support

1шт.

28

84346726

BRACKET

Air Compressor Governor

1шт.

29

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

30

86512947

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

31

J945212

ELBOW

Plain Union

1шт.

32

87543681

HOSE ASSY.

Lube

1шт.

33

87543712

VALVE PRESSURE RELIE

Governor

1шт.

34

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

2шт.

35

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

36

84159148

BREATHER

Air Compressor

1шт.

37

825500

HYD CONNECTOR

Air Compressor

2шт.

38

84351055

TUBE

Nylon, 1/4"

1шт.

39

87015348

REDUCER,3/4"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

40

84173776

UNION

Swivel Adapter

1шт.

Выбрано товаров: 40
