Запчасти Case IH 5088 (33.220.AK) - BRAKE ASSY. (33) - BRAKES & CONTROLS

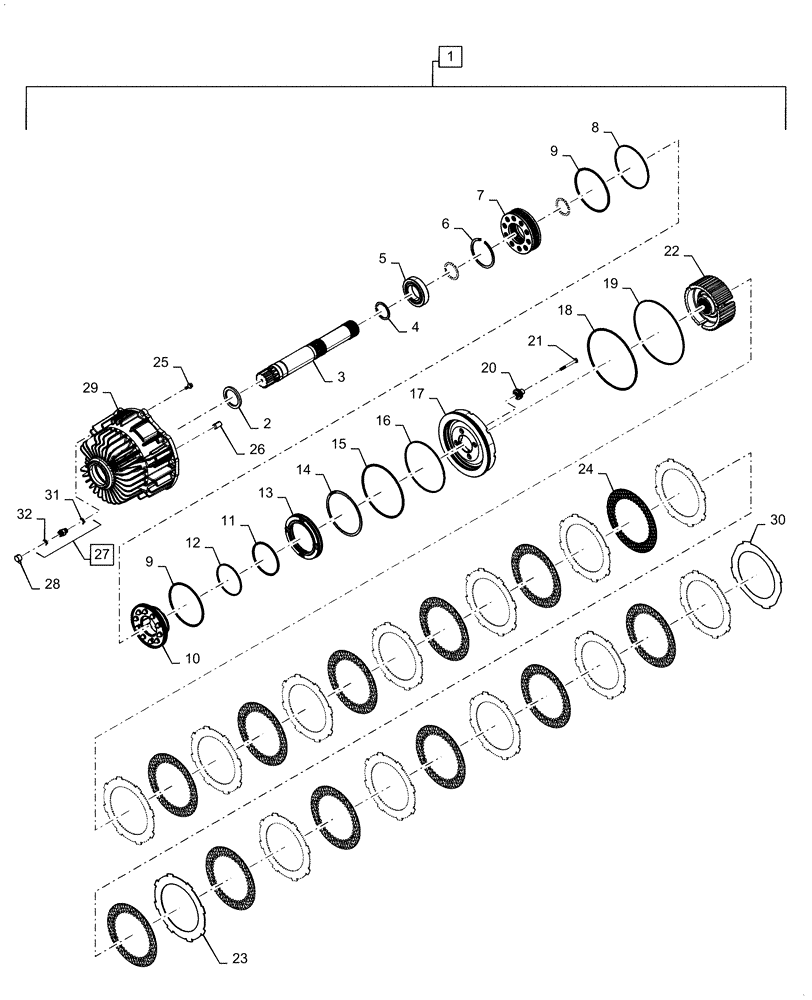

Схема запчастей Case IH 5088 - (33.220.AK) - BRAKE ASSY. (33) - BRAKES & CONTROLS
22
11
18
4
31
28
16
1
2
24
19
6
13
23
8
10
27
5
21
17
15
3
7
30
26
25
29
12
14
20
32
9
9

Артикул

Название

Примечание

Количество

1

236388A1

BRAKE ASSY.

Transmission, Incl 2 - 32

1шт.

2

184072C1

OIL SEAL,55.88mm ID x 76.2mm OD x 9.5mm Thk

Output Shaft of Brake Chamber

1шт.

3

236378A1

SHAFT

Output

1шт.

4

358059R1

SNAP RING

Retaining

3шт.

5

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

1шт.

6

101-21393

SNAP RING,#393, 4.234", Int

1шт.

7

1997999C2

SPRING

Compression

1шт.

8

1997618C4

SEAL,151.1mm ID x 155mm OD x 3.3mm Thk

Outer Pistion

1шт.

9

238-7162

O-RING,0.103" Thk x 5.737" ID, -162, Cl 7, 75 Duro

2шт.

10

1997400C1

PISTON

Park Brake

1шт.

11

238-7157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 7, 75 Duro

1шт.

12

1997619C4

RING,108.2mm ID x 112mm OD x 3.3mm Thk

Piston Seal

1шт.

13

1997399C1

PISTON

Reaction

1шт.

14

102-22625

SNAP RING,#625, 6.474", Int, Spiral

1шт.

15

238-7168

O-RING,0.103" Thk x 7.237" ID, -168, Cl 7, 75 Duro

1шт.

16

1997617C4

SEAL,179.2mm ID x 183mm OD x 3.3mm Thk

Piston

1шт.

17

1997398C1

PISTON

Service Brake

1шт.

18

238-7174

O-RING,0.103" Thk x 8.737" ID, -174, Cl 7, 75 Duro

1шт.

19

1997616C4

SEAL,227.1mm ID x 231mm OD x 3.3mm Thk

Piston

1шт.

20

1997900C1

SPRING

Belleville

4шт.

21

828-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

4шт.

22

1997394C1

HUB

Brake

1шт.

23

1285974C1

BRAKE PLATE

Master Clutch Separator

13шт.

24

84159174

CLUTCH PLATE,161.8mm ID x 228.5mm OD x 2.85mm Thk

Master Friction, HD

12шт.

24

47882457

DISC

Friction, Standard

12шт.

25

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

26

837-16030

DOWEL,16mm OD x 30mm L

2шт.

27

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 31, 32

2шт.

28

189562A1

PLUG

Cap

2шт.

29

1997395C1

HOUSING

Brake

1шт.

30

221598A1

SHIM KIT

Brake Assy

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Выбрано товаров: 33
