Запчасти Case IH 5088 (33.202.BN[02]) - BRAKE VALVE (33) - BRAKES & CONTROLS

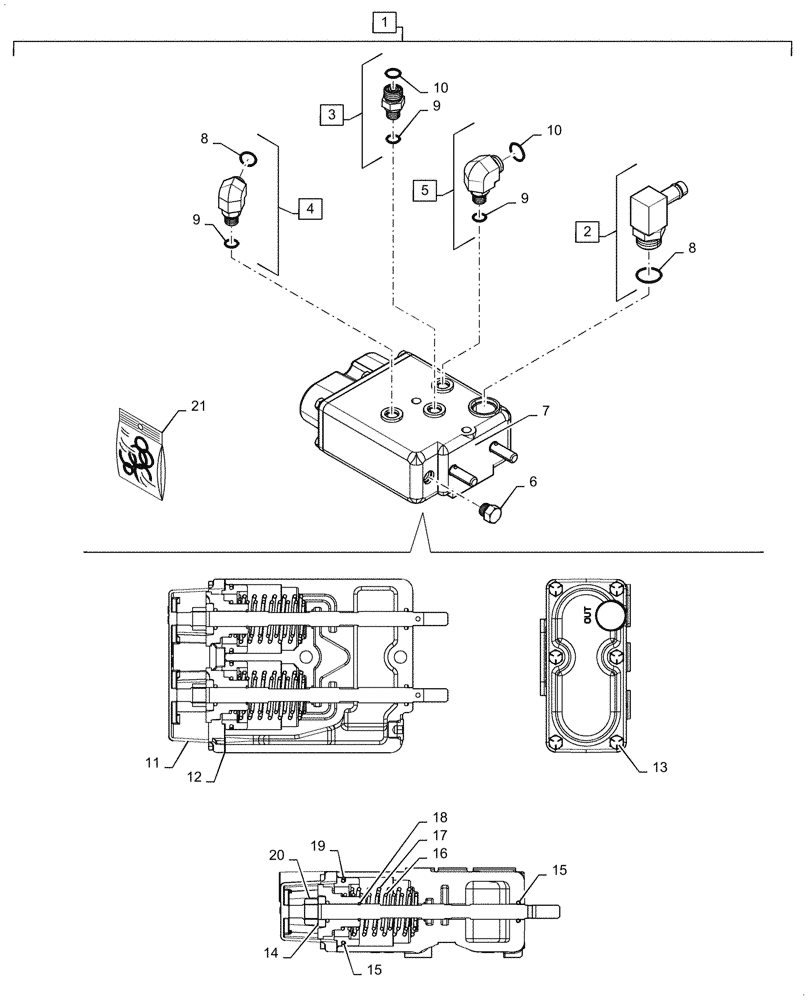

Схема запчастей Case IH 5088 - (33.202.BN[02]) - BRAKE VALVE (33) - BRAKES & CONTROLS
9
5
12
6
8
15
21
9
3
13
11
8
7
17
4
18
14
10
16
2
1
20
19
10
15
9

Артикул

Название

Примечание

Количество

1

137452A3

BRAKE VALVE

Master, Incl 2 - 21

1шт.

2

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

Incl 8

1шт.

3

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Incl 9, 10

1шт.

4

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 8, 9

1шт.

5

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 9, 10

1шт.

6

218-5155

PLUG,9/16" - 18 ORB

1шт.

7

137449A2

BRAKE VALVE

Incl 11 - 21

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

11

384495R1

CAP

Body

1шт.

12

384503R2

GASKET,0.38mm Thk

Body Cap

1шт.

13

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

6шт.

14

69158C1

WASHER,12.78mm ID x 25.4mm OD x 6.35mm Thk

Piston Retainer

2шт.

15

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

2шт.

16

1263125C1

SPRING

Return

2шт.

17

1263124C1

SPRING

Large Piston

2шт.

18

A27020

RING

Retaining

2шт.

19

1986769C1

BACK-UP RING

Slipper Seal

2шт.

20

232-4638

LOCK NUT,1/2"-20, GC

2шт.

21

71487C92

GASKET KIT

Valve

1шт.

Выбрано товаров: 21
