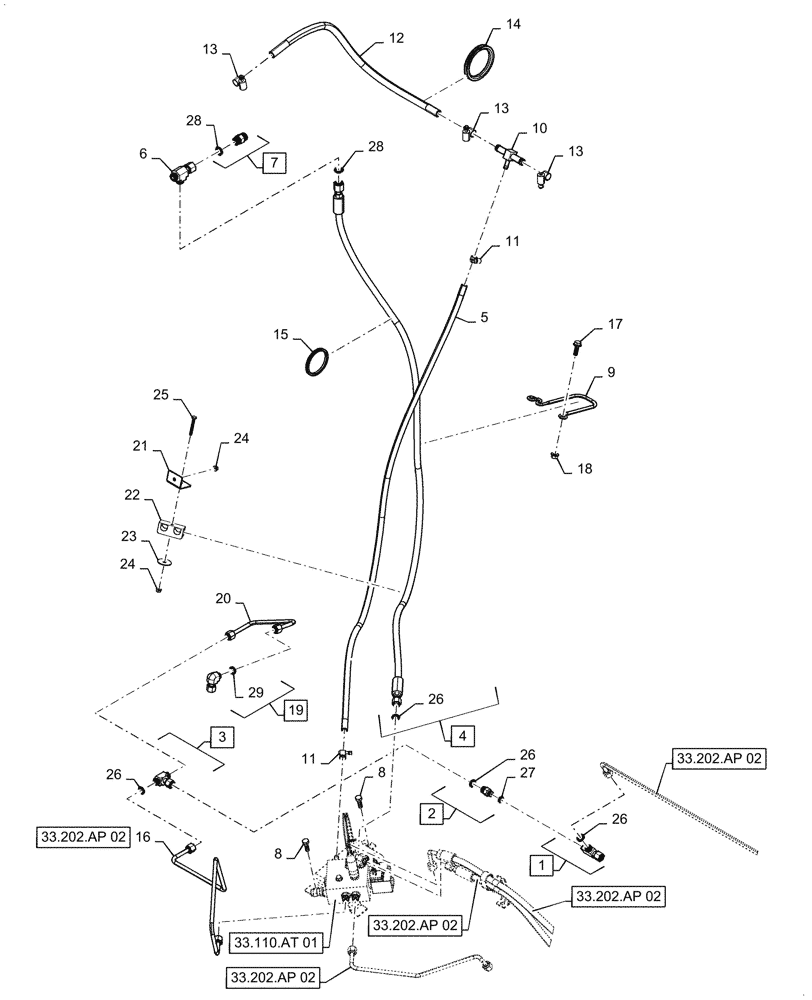

Запчасти Case IH 5088 (33.202.AP[01]) - BRAKE SUPPLY LINES (33) - BRAKES & CONTROLS

1

277963A1

FITTING

Tow Check Tee, Incl 26

1шт.

2

277961A1

VALVE

In-Line Check, Incl 26, 27

1шт.

3

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

Incl 26

1шт.

4

87678375

HOSE ASSY.

Parking Brake/Feeder Clutch Valve Supply, Incl 26, 28

1шт.

5

87499929

HOSE,9.53mm ID x 1650mm L

Brake Return

1шт.

6

86624132

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

7

235705A1

VALVE

In-Line Check, Incl 28

1шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

9

232707A1

GUIDE

Steering Hoses

1шт.

10

177975A1

TEE

Low Pressure Return

1шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

12

87359779

HOSE,15.88 mm ID x 820.00 mm

Park Brake Valve Return

1шт.

13

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

3шт.

14

87416897

CONDUIT

Convoluted Insulation

1шт.

15

87582269

DUCT

Convoluted Insulation

1шт.

16

87678377

HYD TUBE,.375" OD

Park Brake Left

1шт.

17

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

18

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

19

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 29

1шт.

20

87726278

HYD TUBE,.375" OD

Tow Check

1шт.

21

84129335

BRACKET

Clamp

1шт.

22

183826C1

CLAMP

Oil

1шт.

23

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

25

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

29

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
