Запчасти Case IH 5088 (33.110.AT[01]) - VALVE, PARKING BRAKE (33) - BRAKES & CONTROLS

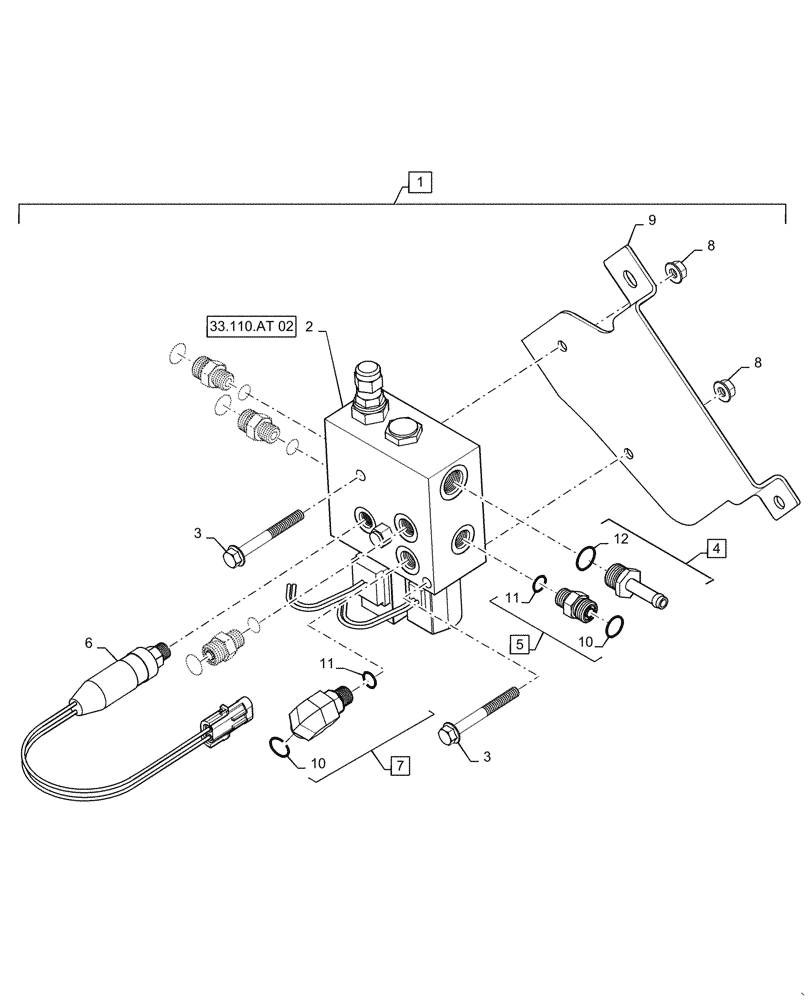

Схема запчастей Case IH 5088 - (33.110.AT[01]) - VALVE, PARKING BRAKE (33) - BRAKES & CONTROLS
33.110.at 02
10
8
2
12
7
5
11
9
10
4
1
6
3
3
11
8

Артикул

Название

Примечание

Количество

1

87388129

VALVE, BRAKE

Parking Brake, Incl 2 - 9

1шт.

2

129010A4

CONTROL VALVE

Feeder And Parking Brake

1шт.

3

87656138

BOLT,M8 x 78.1mm, Cl 10.9

Flange, M8 x 70mm, 10.9

2шт.

4

217-386

FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB

Incl 12

1шт.

5

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 10, 11

4шт.

6

47532787

PRESSURE SWITCH

Low Pressure

1шт.

7

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 10, 11

1шт.

8

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

9

87678379

SUPPORT

Parking Brake Valve

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 12
