Запчасти Case IH 5088 (29.300.AP[03]) - VAR - 722475 - HYDRAULIC SYSTEM, REAR AXLE (29) - HYDROSTATIC DRIVE

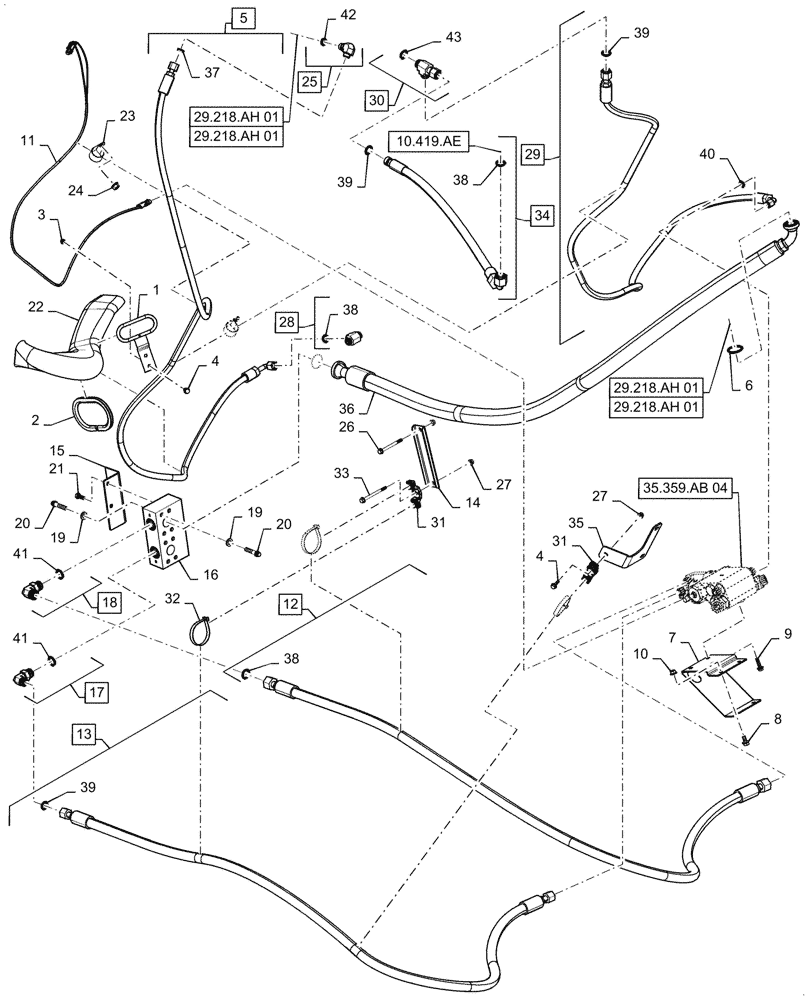

Схема запчастей Case IH 5088 - (29.300.AP[03]) - VAR - 722475 - HYDRAULIC SYSTEM, REAR AXLE (29) - HYDROSTATIC DRIVE
35.359.ab 04
41
16
8
41
2
14
34
21
17
24
12
20
31
13
39
27
39
1
11
19
6
38
39
3
36
28
25
7
38
42
33
4
5
38
19
26
22
35
10
23
27
43
9
20
4
32
30
29
15
40
31
18
37
10.419.ae
29.218.ah 01
29.218.ah 01
29.218.ah 01
29.218.ah 01

Артикул

Название

Примечание

Количество

1

87714707

BRACKET

Loop

1шт.

2

87063C3

SEAL

Edge Guard

1шт.

3

87697608

NUT

M8 x 1.25

2шт.

4

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

5

47427682

HYDRAULIC HOSE

Valve Drain, Incl 37

1шт.

6

235757

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

7

84128104

BRACKET

PGA Valve

1шт.

8

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

4шт.

9

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

10

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

11

87306083

CABLE

PGA Harness

1шт.

12

84510048

HOSE ASSY.,15.88mm ID x 2620mm L, SAE 100R15

Valve, Forward, Incl 38

1шт.

13

84156326

HOSE ASSY.

Valve, Reverse, Incl 39

1шт.

14

87727969

BRACKET

Back Up Clamp Channel

1шт.

15

84197925

BRACKET

PGA Manifold

1шт.

16

86976663

CONNECTING BLOCK

Tee

1шт.

17

84100209

90 ELBOW,1"-14 ORFS x M27 x 2 ORB

Incl 41

1шт.

18

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 41

1шт.

19

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

20

87026652

12 PT SCREW,Flg, M12 x 1.75 x 50mm, Cl 12.9

16шт.

21

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

22

84171873

PROTECTIVE SLEEVE,90mm ID x 850mm L

Hose

1шт.

23

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

2шт.

24

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

25

9992307

90 ELBOW,90 Degree, 13/16"-16 x 3/4"-16 Adj, ORFS

Incl 42

1шт.

26

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

1шт.

27

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

28

201-409

TEE,13/16"-16 ORFS

Incl 38

1шт.

29

84523951

HOSE ASSY.,12.7mm ID x 2515mm L, SAE 100R17

Incl 39, 40

1шт.

30

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Incl 43

1шт.

31

84360209

BASE

Tie

2шт.

32

84360212

CABLE TIE,294.2mm L, Nylon

4шт.

33

87301686

BOLT,M8 x 108.1mm, Cl 10.9

1шт.

34

84517739

HOSE ASSY.

Air Screen Return, Incl 38, 39

1шт.

35

84588535

BRACKET

Hose Guide

1шт.

36

84557185

HOSE ASSY.,31.75mm ID x 2905mm L, SAE 100R15

Forward Hydrostatic

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

38

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

39

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

41

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

42

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 43
