Запчасти Case IH 5088 (29.218.AO[03]) - HYDROSTATIC PUMP ASSY (105 CC/REV) (29) - HYDROSTATIC DRIVE

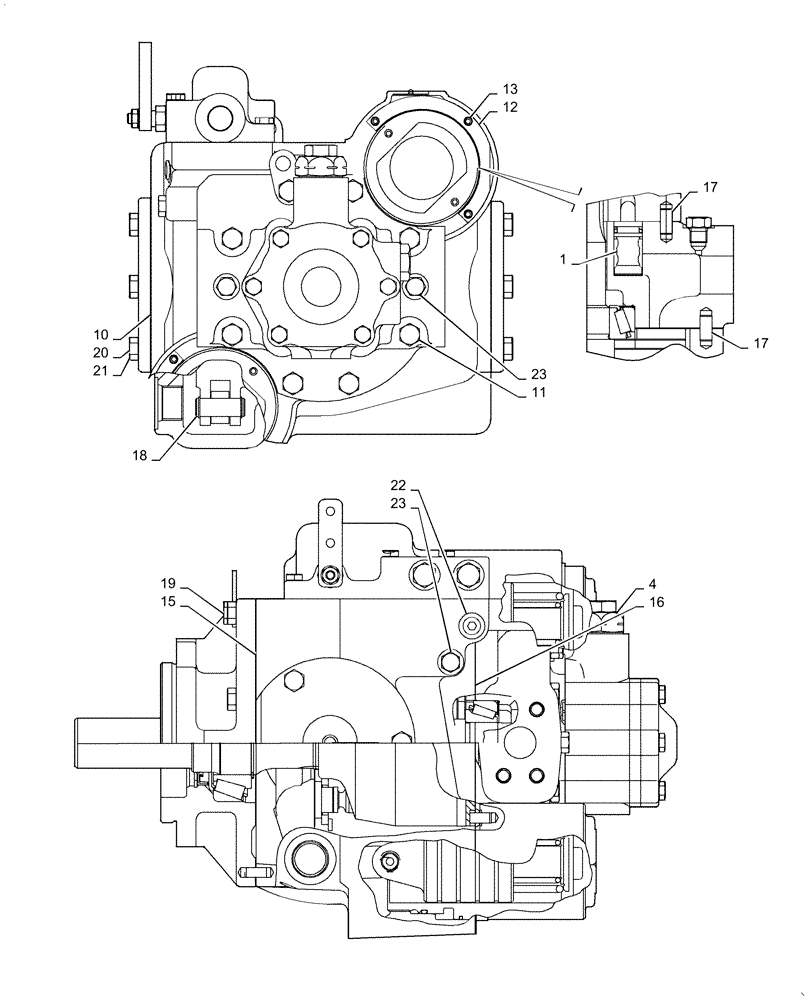

Схема запчастей Case IH 5088 - (29.218.AO[03]) - HYDROSTATIC PUMP ASSY (105 CC/REV) (29) - HYDROSTATIC DRIVE
1
23
16
22
12
23
20
21
17
4
19
13
11
15
10
17
18

Артикул

Название

Примечание

Количество

1

140769C1

CHECK VALVE

Incl 2 - 3

2шт.

2

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Not Shown

1шт.

3

140770C1

RING

Check Valve, Not Shown

1шт.

4

1986739C1

REPAIR KIT

Internal Pressure Override, Incl 5 - 9

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Shown

1шт.

6

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

Not Shown

1шт.

7

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

Not Shown

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not Shown

1шт.

9

235419A1

SHIM KIT

Valve, Not Shown

1шт.

10

142386C91

SHIM KIT

Trunnion

1шт.

11

50087

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5, Full Thd

6шт.

12

142408C1

RETAINER

Ring

2шт.

13

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

6шт.

14

9617975

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Not Shown

2шт.

15

142399C1

GASKET

Mounting Flange

1шт.

16

92741C2

GASKET,0.38mm Thk

End Cover

1шт.

17

37-1510

DOWEL,5/16" x 5/8"

7шт.

18

100-1356

SNAP RING,#56, Ext

4шт.

19

9627887

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd

12шт.

20

280541

BOLT,Hex, 7/16" - 14 x 2", Gr 8

2шт.

21

2652

BOLT

Hex

6шт.

22

9672438

PLUG,7/16" - 20 ORB

1шт.

23

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

Выбрано товаров: 23
