Запчасти Case IH 5088 (29.218.AO[02]) - HYDROSTATIC PUMP ASSY (105 CC/REV) (29) - HYDROSTATIC DRIVE

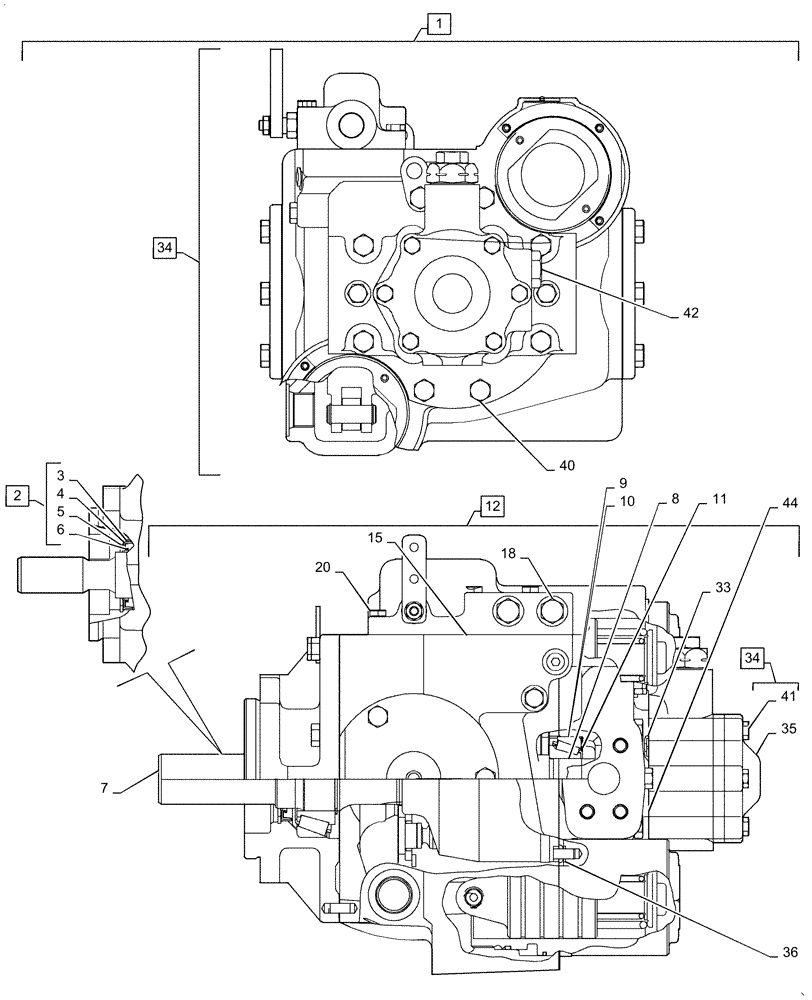

Схема запчастей Case IH 5088 - (29.218.AO[02]) - HYDROSTATIC PUMP ASSY (105 CC/REV) (29) - HYDROSTATIC DRIVE
9
42
36
44
4
6
7
18
34
1
3
15
10
40
35
2
41
20
12
5
8
33
11
34

Артикул

Название

Примечание

Количество

1

84190597

HYDROSTATIC PUMP,105.4 CC

105 CC/REV, Incl 2 - 45

1шт.

1

84190597R

REMAN-HYDROSTAT PUMP

105 CC/REV, Incl 2 - 45

1шт.

1

84190597C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87678486

SEAL KIT

Incl 3 - 6

1шт.

3

87665331

SEAL

Shaft

1шт.

4

87623850

SPACER

Shaft Seal

1шт.

5

87665330

RING

Incl with 2

1шт.

6

87637839

SEAL,39.9mm ID x 50.1mm OD x 8.9mm Thk

Incl with 2

1шт.

7

403149A1

SHAFT

Hydrostatic Pump

1шт.

8

ST863

BEARING CUP,93.22mm OD x 23.81mm W

1шт.

9

530741R1

BEARING CUP

Shaft

1шт.

10

400983R91

ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"

1шт.

11

142398C91

SHIM KIT

Bearing

1шт.

12

191065A1

CONTROL VALVE

Kit, Incl 13 - 34

1шт.

13

1978048C3

KIT

Control Valve, Not Shown, Incl 14 - 15

1шт.

14

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Incl with 13, Not Shown

1шт.

15

133756C1

GASKET

Control Valve

1шт.

16

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

Not Shown

1шт.

17

425-105

NUT,5/16"-18, G5

Not Shown

1шт.

18

218-5155

PLUG,9/16" - 18 ORB

Incl 19

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Shown

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

22

197909A2

ADAPTER,9/16" - 18 x 3/4"- 16

Neutral Start Switch, Not Shown, Incl 23 - 27

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Shown

1шт.

24

84-1103

SET SCREW,Hex Soc, #10-32 x 3/16"

Not Shown

2шт.

25

211-1006

BALL,3/16" Dia

Not Shown

1шт.

26

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

Not Shown

1шт.

27

86991254

SLEEVE,9.397mm ID x 12.7mm OD x 9.397mm L

Switch, Not Shown

1шт.

28

197514A2

SWITCH

Neutral Start, Not Shown

1шт.

29

83-1106

SET SCREW,Hex Soc, #10-24 x 3/8"

Not Shown

1шт.

30

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Not Shown

1шт.

31

100-1125

SNAP RING,#25, Ext

Not Shown

2шт.

32

38-1614

LOCK PIN,2.36mm OD x 22.23mm L

Not Shown

1шт.

33

1346021C1

ORIFICE

Control Valve Vent

1шт.

33

1272750C1

ORIFICE

Control Valve Vent

1шт.

34

107593A2

PUMP

Kit, Charge, Incl 35 - 42

1шт.

35

37-1510

DOWEL,5/16" x 5/8"

2шт.

36

1986741C1

VALVE PRESSURE RELIE

Charge, Not Shown, Incl 37 - 38

1шт.

37

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Not Shown

1шт.

38

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Not Shown

2шт.

39

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

40

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

41

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

1шт.

42

255081A1

SEAL KIT

Charge Pump, Not Shown, Incl 43 - 45

1шт.

43

133760C2

GASKET

Charge Pump

1шт.

44

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

Not Shown

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Not Shown

1шт.

Выбрано товаров: 48
