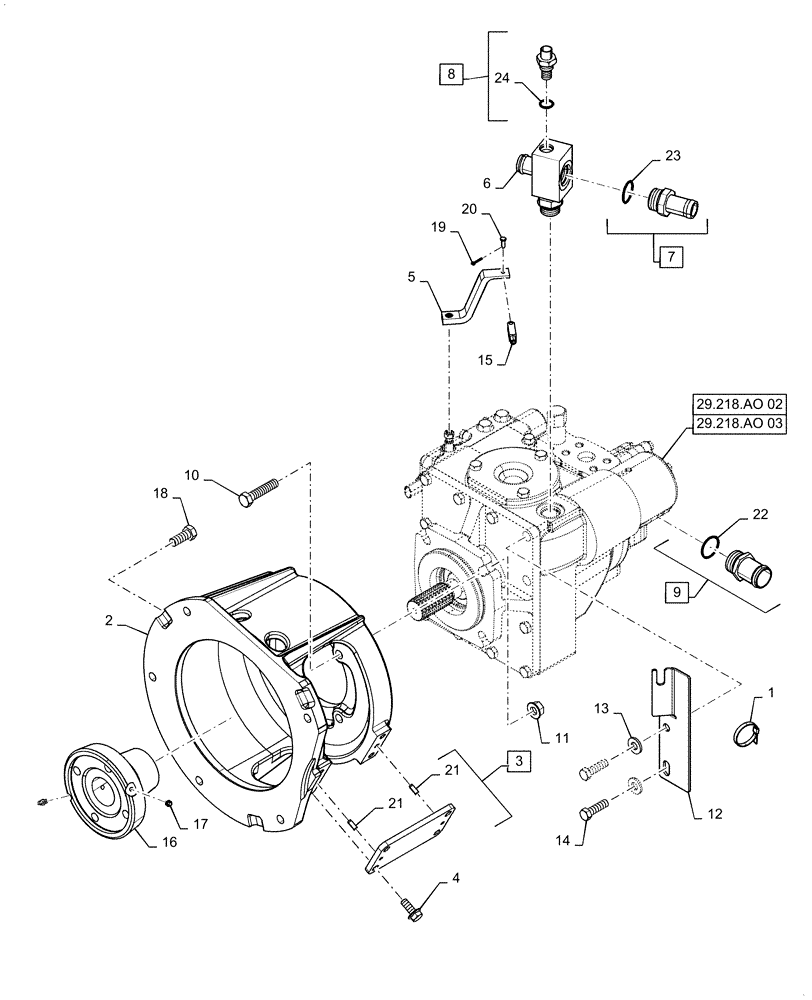

Запчасти Case IH 5088 (29.218.AO[01]) - HYDROSTATIC PUMP MOUNTING, (105 CC/REV) (29) - HYDROSTATIC DRIVE

1

306132C1

CABLE TIE,14.5" L

1шт.

2

87626988

HOUSING

Hydrostatic Pump

1шт.

3

87584790

SUPPORT ASSY.

Pump Housing, Incl 21

1шт.

4

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

5

184433A1

LEVER

Hydro Pump Control

1шт.

6

123521A2

TEE

Case Drain

1шт.

7

123487A1

VALVE

Cooler Bypass, Incl 23

1шт.

8

177678A1

TEMPERATURE SWITCH

Temperature, Incl 24

1шт.

9

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Incl 22

1шт.

10

87975

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

4шт.

11

86544265

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

12

84217675

BRACKET, SUPPORTING

Hydro Control Cable

1шт.

13

87613185

WASHER,0.47" ID x 1" OD x 0.12" Thk

2шт.

14

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

2шт.

15

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

16

87545088

HOUSING

Hub, Auxiliary Belt Drive, 21T

1шт.

17

87414

LUBE NIPPLE,1/4" - 28

2шт.

18

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

3шт.

19

280236

COTTER PIN,1/16" x 1/2"

1шт.

20

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

21

87635856

PIN,6mm OD x 16mm L

2шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

23

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
