Запчасти Case IH 5088 (29.218.AE) - MOTOR RELIEF VALVE (29) - HYDROSTATIC DRIVE

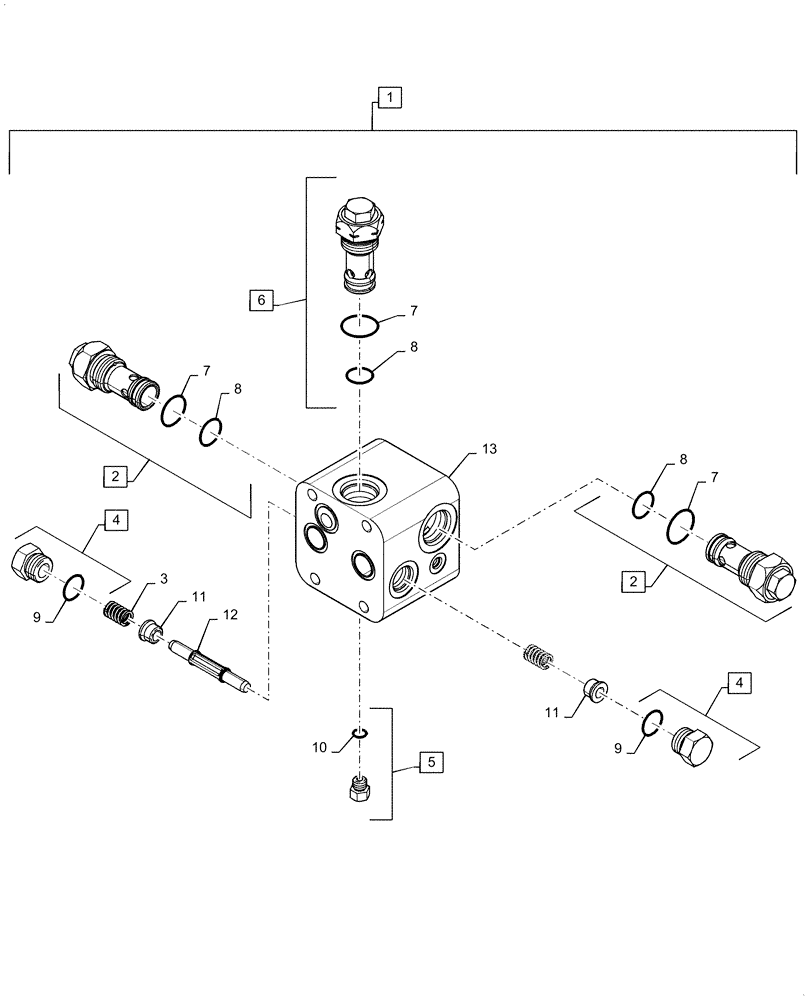

Схема запчастей Case IH 5088 - (29.218.AE) - MOTOR RELIEF VALVE (29) - HYDROSTATIC DRIVE
6
13
4
11
8
7
8
4
2
1
3
11
9
10
5
9
8
7
2
7
12

Артикул

Название

Примечание

Количество

1

87479010

VALVE

Motor Relief, Incl 2 - 13

1шт.

2

84144765

VALVE PRESSURE RELIE

Cartridge, 7 KSI, Incl 7, 8

2шт.

3

145560C1

SPRING

Shuttle Valve

2шт.

4

86512512

PLUG,7/8" - 14 ORB

Incl 9

2шт.

5

9672438

PLUG,7/16" - 20 ORB

Incl 10

1шт.

6

140761C1

VALVE PRESSURE RELIE

Low, Incl 7, 8

1шт.

7

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

3шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

9

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

10

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

Spring Cap, Incl in 1

2шт.

12

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

Выбрано товаров: 13
