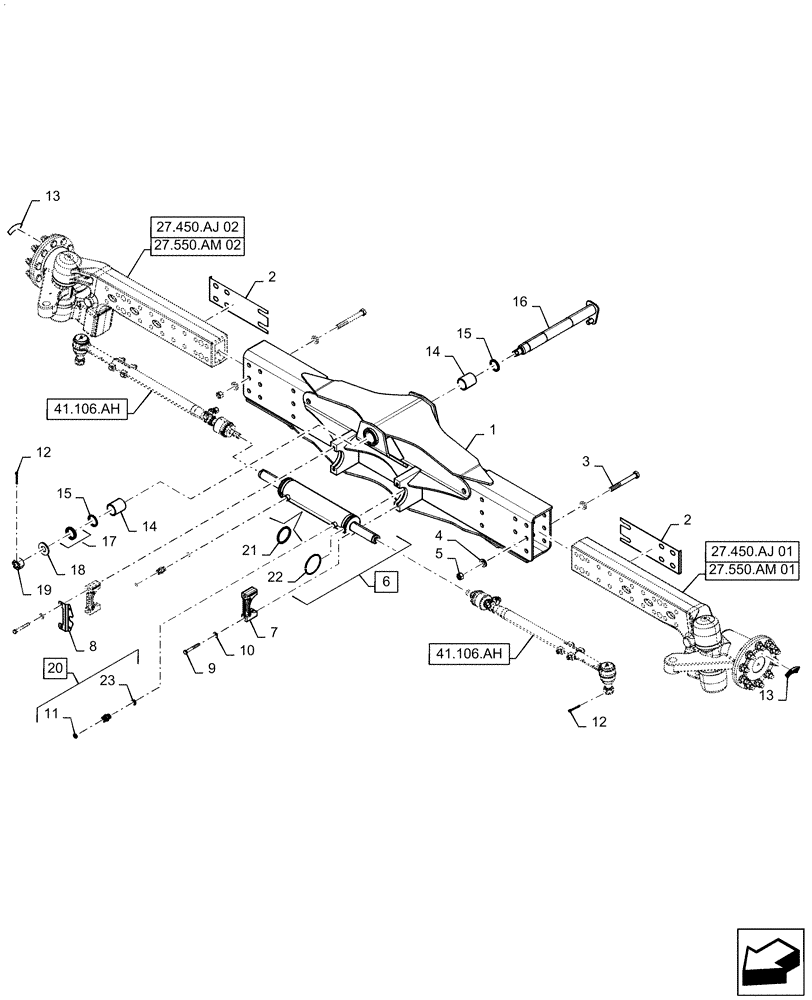

Запчасти Case IH 5088 (27.550.AJ) - VAR - 722034, 722475 - REAR AXLE, STANDARD (27) - REAR AXLE SYSTEM

1

87677485

AXLE

Rear Center

1шт.

2

87573934

SHIM

Rear Axle

2шт.

3

84444625

BOLT,Hex, M20 x 170mm, Cl 8.8

12шт.

4

9850384

WASHER,23mm ID x 40mm OD x 6mm Thk

24шт.

5

84100564

LOCK NUT,M20

12шт.

6

87674051

STEERING CYLINDER,45mm Rod, 284mm Stroke

Incl 21, 22

1шт.

7

87582995

RETAINER

Cylinder

2шт.

8

87753056

BRACKET

Steering Cylinder, Anti-Rotation

1шт.

9

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

88182

COTTER PIN,1/4" OD x 2" L

3шт.

13

87108677

DECAL

Wheel Torque, VAR - 722034

2шт.

13

87108678

DECAL

Wheel Torque, VAR - 722475

2шт.

14

84334438

BUSHING,50mm ID x 60mm OD x 70mm L

2шт.

15

84069736

SEALING RING,50mm ID x 60mm OD x 6mm Thk

2шт.

16

84074397

AXLE

Pivot Pin

1шт.

17

539450

SHIM,50mm ID x 62mm OD x 0.5mm Thk

2шт.

18

ZED327802

WASHER,31mm ID x 65mm OD x 6mm Thk

1шт.

19

390822

SLOTTED NUT,M30 x 1.5, Cl 8

1шт.

20

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 11, 23

2шт.

21

87597609

SEAL PACKAGE

Steering Cylinder

1шт.

22

47870722

SNAP RING

Steering Cylinder

1шт.

23

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.
