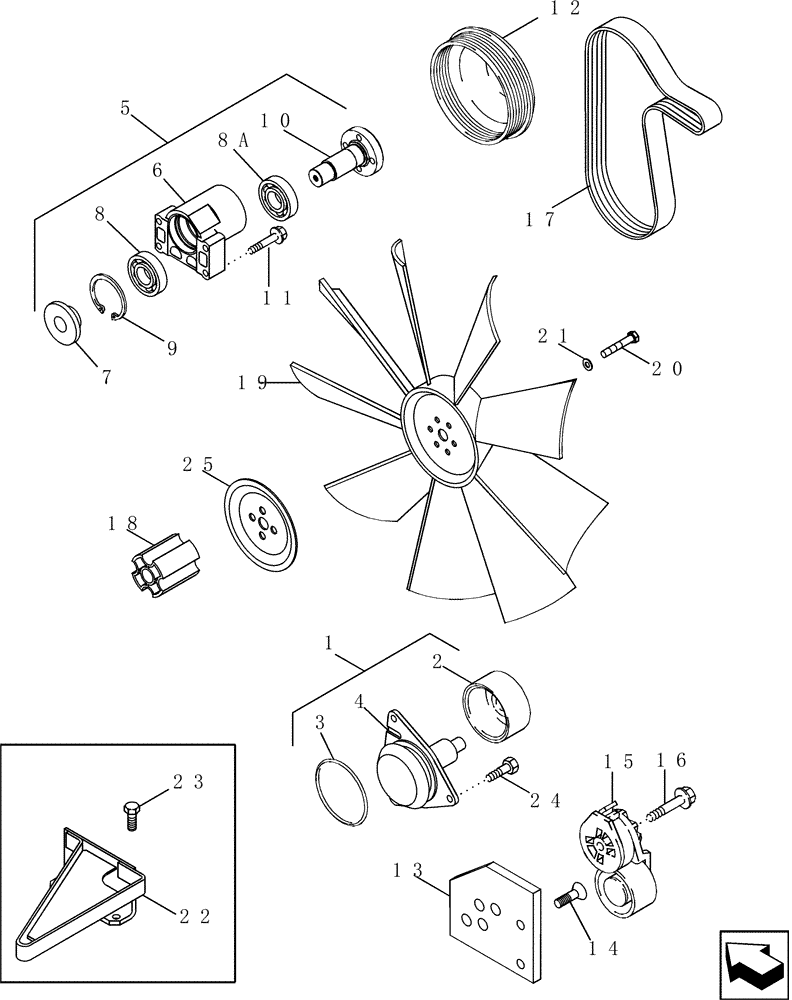

Запчасти Case IH 2588 (10.402.02) - WATER PUMP SYSTEM (10) - ENGINE

1

87308650

KIT, WATER PUMP REPA

Incl Refs 2 - 4

1шт.

87308650R

REMAN-WATER PUMP

2588 (NA) ASN HAJ300001 (10/06-)

1шт.

87308650C

CORE-WATER PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

PUMP

1шт.

5

87408931

SUPPORT

Fan, Incl Refs 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

HUB

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING, Ball

1шт.

8a

NSS

NOT SOLD SEPARAT

BEARING, Ball

1шт.

9

NSS

NOT SOLD SEPARAT

RING, Snap

1шт.

10

NSS

NOT SOLD SEPARAT

HUB

1шт.

11

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

4шт.

12

J926854

PULLEY

Accessory Drive

1шт.

13

J925211

BRACKET

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

15

87317615

BELT TENSIONER

1шт.

16

J282433

FLANGE BOLT,Hex, M10 x 1.5 x 85mm

1шт.

17

A78022

V-BELT,3.56 mm W x 2005.00 mm L, 8 Ribs

1шт.

18

A184751

SPACER,Fan, 74/75mm Thk

75 mm

1шт.

19

87313617

FAN,9 Blades, 762mm OD

Corn, Grain and Rice, 9 Blade

1шт.

20

814-10105

BOLT,Hex, M10 x 1.5 x 105mm, Cl 8.8

4шт.

21

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

22

87411538

GUIDE

Engine Fan Belt

1шт.

23

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

2шт.

24

87351192

BOLT

3шт.

25

87573769

SHIELD

Fan Hub, Start Serial: HAJ301749

1шт.
