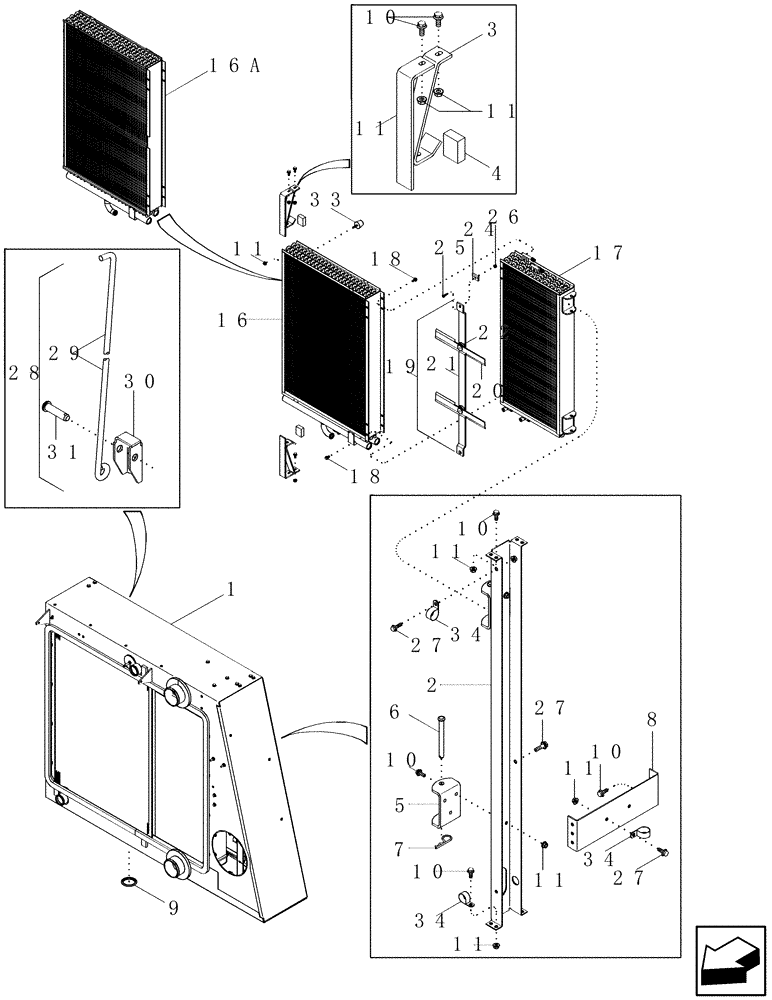

Запчасти Case IH 2588 (10.310.03) - COOLER BOX ASSY (May 10 2010 11:27AM) (10) - ENGINE

1

87343320

BOX

Cooler

1шт.

2

87429529

BRACKET

1шт.

3

87423364

SUPPORT

2шт.

4

187884C1

SEALING STRIP,50mm L

Cut 2" from P/N 187885C1

2шт.

5

87429534

BRACKET

2шт.

6

439-5880

HEADED PIN,1/2" x 5"

2шт.

7

480523R1

HAIR PIN COTTER

2шт.

8

86984095

BRACKET

1шт.

9

1302758C1

PLUG

Clean Out

1шт.

10

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

23шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

15

353-410

PLUG,Dome, .875" hole, Nylon

2шт.

16

444921A3

OIL COOLER

1шт.

Corn, Grain and Rice Combine

1шт.

16a

446343A3

OIL COOLER

Rice Combines

1шт.

17

444922A3

COOLER

Fuel/Condenser

1шт.

18

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

8шт.

19

87341294

WIPER

ASSY, Charge Air Cooler, Incl Refs 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER W/Pin ASSY

2шт.

21

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

22

308803

BALL BEARING

2шт.

23

282857A1

DECAL

Connector Cover (Not Shown)

2шт.

24

87408871

CLAMP

2шт.

25

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

1шт.

26

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

27

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

28

87413776

SUPPORT

Oil Cooler Prop, Incl Refs 29 - 32

1шт.

29

87413775

ROD

1шт.

30

87413774

SUPPORT

1шт.

31

439-1828

HEADED PIN,1/2" x 1 3/4"

1шт.

33

87109195

BUMPER,5/16" - 18, 38mm OD

2шт.

34

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

3шт.
