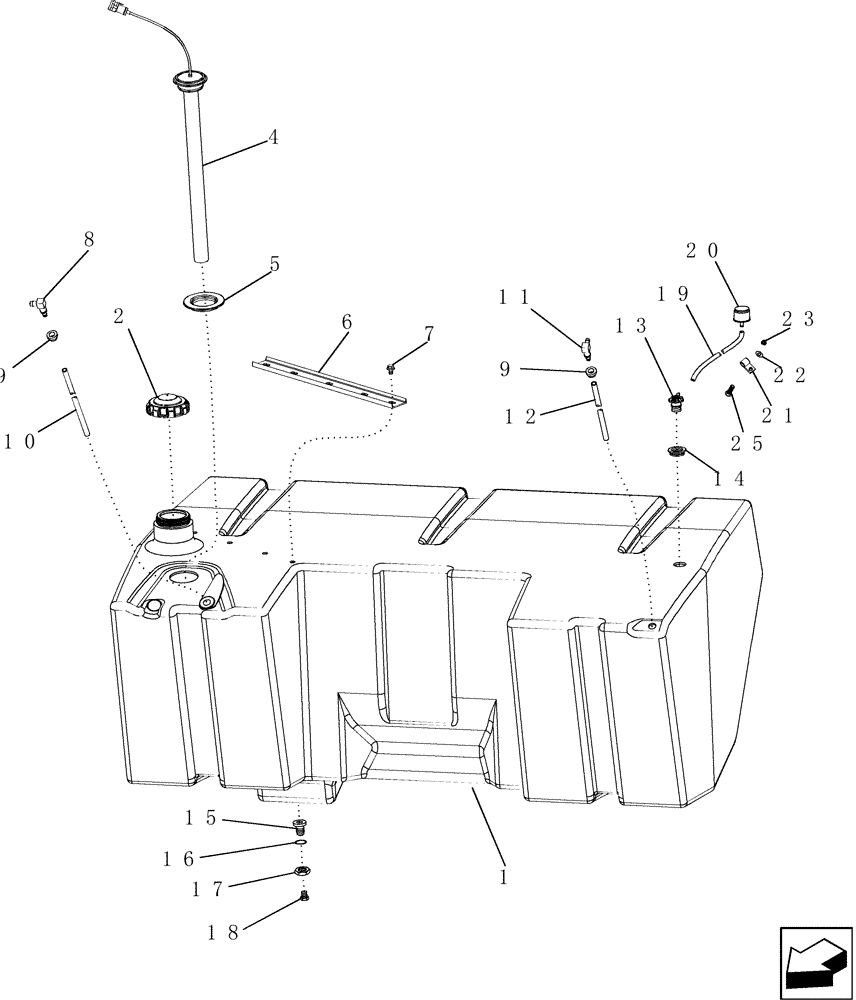

Запчасти Case IH 2588 (10.214.09) - FUEL TANK (10) - ENGINE

87348514

FUEL TANK

170 Gal, Incl Refs 1 - 18

1шт.

1

349601A3

FUEL TANK

1шт.

2

257349A1

FILLER CAP

1шт.

4

87332223

SENDER UNIT

Fuel Level

1шт.

5

255095A1

GROMMET

1шт.

6

402197A1

SUPPORT

1шт.

7

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

5шт.

8

392075A1

ELBOW

1шт.

9

394692A1

GROMMET

2шт.

10

392076A1

FUEL TUBE,9.53 mm ID, 12.7 mm OD

1шт.

11

392077A1

ELBOW

1шт.

12

392078A1

FUEL TUBE,9.53 mm ID, 12.7 mm OD

1шт.

13

86999948

SAFETY VALVE

1шт.

14

86999947

GROMMET,25mm ID x 33mm OD, 46mm Shoulder

1шт.

15

282708A1

FITTING

1шт.

16

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

17

282709A1

NUT

1шт.

18

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE Fuel Vent, 1475 mm (58-1/8"), Cut From 87311634

1шт.

20

86999949

FUEL FILTER

1шт.

21

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

22

495-11034

WASHER,5/16", SAE

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

24

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Not Shown

2шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.
