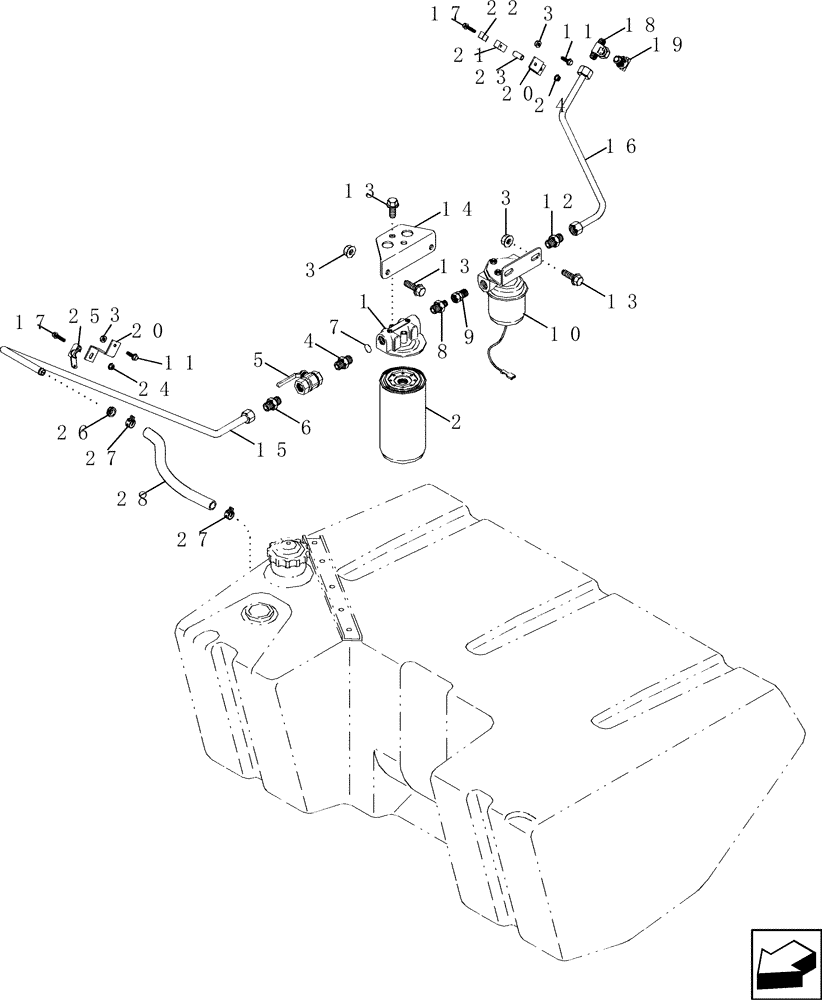

Запчасти Case IH 2588 (10.214.07) - FUEL, SUPPLY (10) - ENGINE

1

87302103

FILTER ASSY

Incl Ref 2

1шт.

2

87307432

FUEL FILTER

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

4

218-5441

HYD CONNECTOR,7/8" - 14 ORB x 1/2" - 14 NPT

CONNECTOR 1/2", Serial Range: NPTF-7/8"

1шт.

5

1345205C1

SHUT-OFF VALVE

1шт.

6

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

Incl Ref 11

1шт.

7

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

1шт.

9

218-959

HYD CONNECTOR,37 Degree, Sw, 9/16"-18, Fem x 9/16"-18 NPT, Male, Brass

1шт.

10

87756609

FUEL PUMP,12V, 6A

Lift

1шт.

11

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

12

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

14

87311131

BRACKET

Fuel Filter

1шт.

15

87305320

FUEL TUBE,12.70 mm OD x 118.00, 635.49 mm L

Supply Tank

1шт.

16

87305323

FUEL TUBE,0.375" OD

Fuel

1шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

18

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

1шт.

19

86982771

VALVE

Drain

1шт.

20

87311456

BRACKET

Fuel Line Supply

1шт.

21

449127A1

CLAMP

Tube

1шт.

22

449128A1

CLAMP,20mm ID

Tube Clamp

1шт.

23

418785A1

SPACER

Tube Clamp

1шт.

24

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

25

196447C1

CLAMP

Tube

1шт.

26

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.

27

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

28

364782A1

FUEL HOSE

Inlet

1шт.
