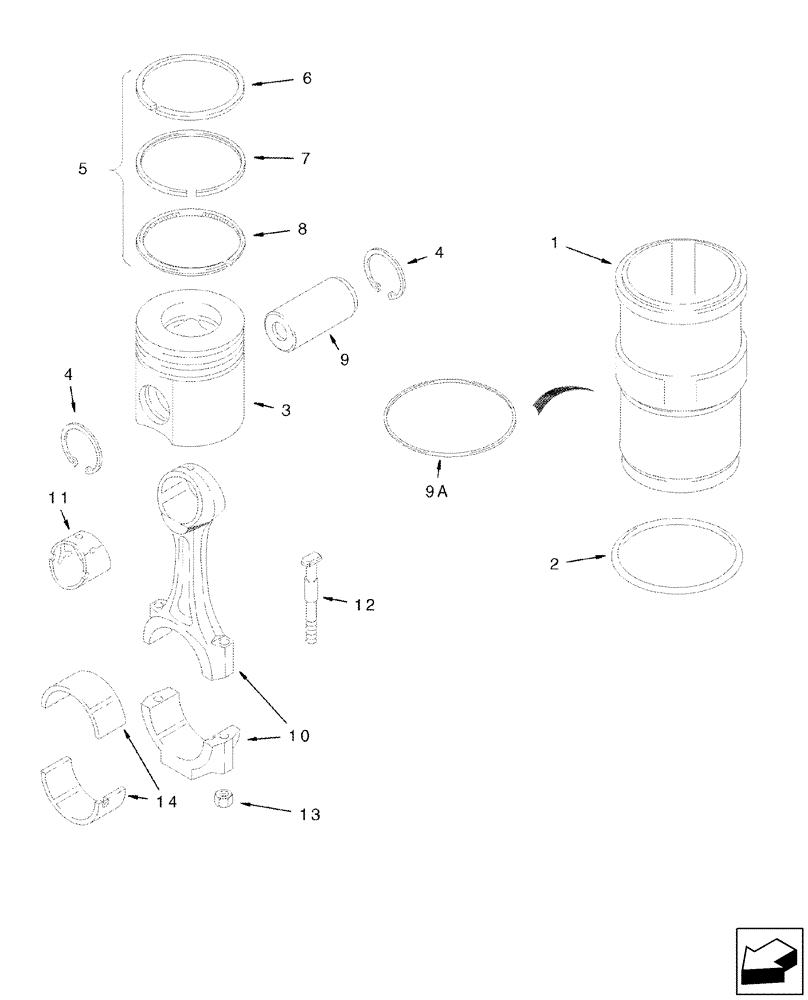

Запчасти Case IH 2588 (10.105.02) - PISTONS - CONNECTING RODS (10) - ENGINE

87343262

KIT

Piston and Sleeve, Standard, Incl Refs 1 - 8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

87378369

PISTON & RINGS KIT

Incl Refs 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

87343194

PISTON RINGS KIT

Incl Refs 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING, Top

1шт.

7

NSS

NOT SOLD SEPARAT

RING, Middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING, Bottom

1шт.

9

87342670

PISTON PIN

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

84145656

CONNECTING ROD

Incl Refs 10 - 13

6шт.

84145656R

REMAN-CONNECTING ROD

Reman for New P/N 84145656

6шт.

84145656C

CORE-ROD CONNECTING

Return Part Number, Core Connecting Rod

6шт.

84487529R

REMAN-CONNECTING ROD

2588 ASN HAJ300001 (10/06-), Reman for New P/N 84145656

6шт.

84487529C

CORE-ROD CONNECTING

Return Part Number

6шт.

10

NSS

NOT SOLD SEPARAT

ROD

1шт.

11

87343250

BUSHING,45.03mm ID x 49mm OD x 43mm L

1шт.

12

J928870

ROD

2шт.

13

J934864

NUT

2шт.

14

87443389

BEARING LINER

Kit, Standard

6шт.

14

87443529

BEARING LINER

Kit, Undersize 0.25 mm

6шт.

14

87443532

BEARING LINER

Kit, Undersize 0.50 mm

6шт.

14

87443533

BEARING LINER

Kit, Undersize 0.75 mm

6шт.

14

87443534

BEARING LINER

Kit, Undersize 1.00 mm

6шт.
