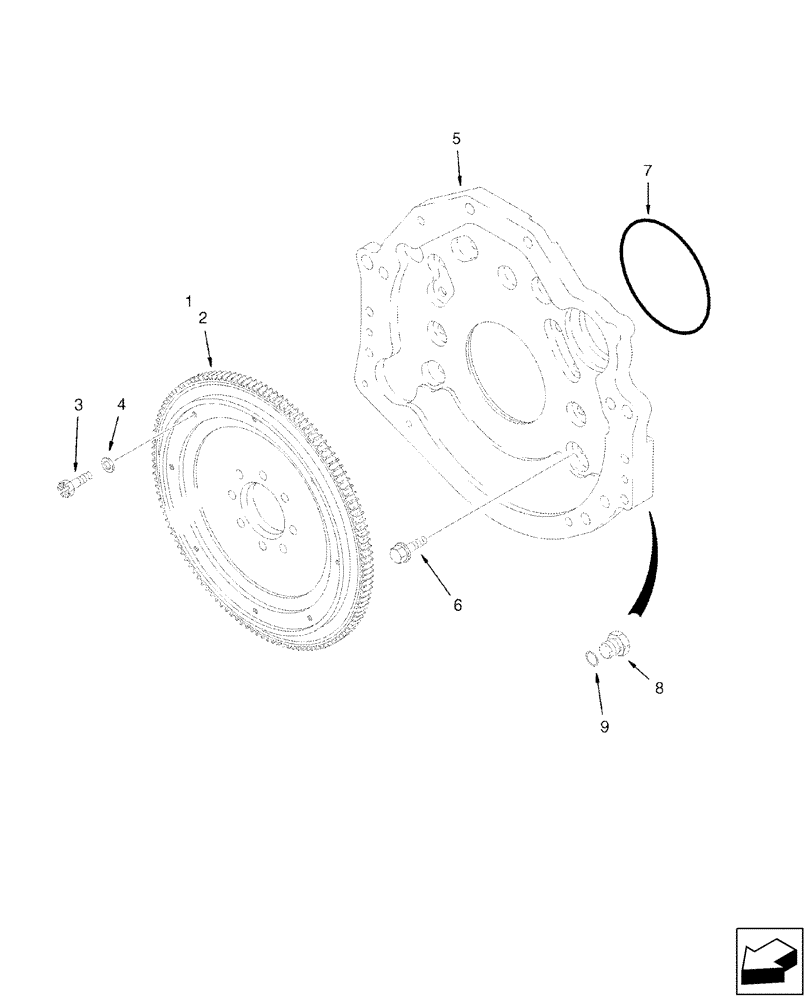

Запчасти Case IH 2588 (10.103.05) - FLYWHEEL AND BACKING PLATE (10) - ENGINE

1

87553493

FLYWHEEL

Incl Ref 2

1шт.

2

J905427

GEAR

1шт.

3

J908181

SCREW,Hex, M12 x 1.25 x 50mm, Cl 12.9

12 x 50 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

5

J913593

PLATE

1шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

8

J910248

PLUG

Incl Ref 9

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.
