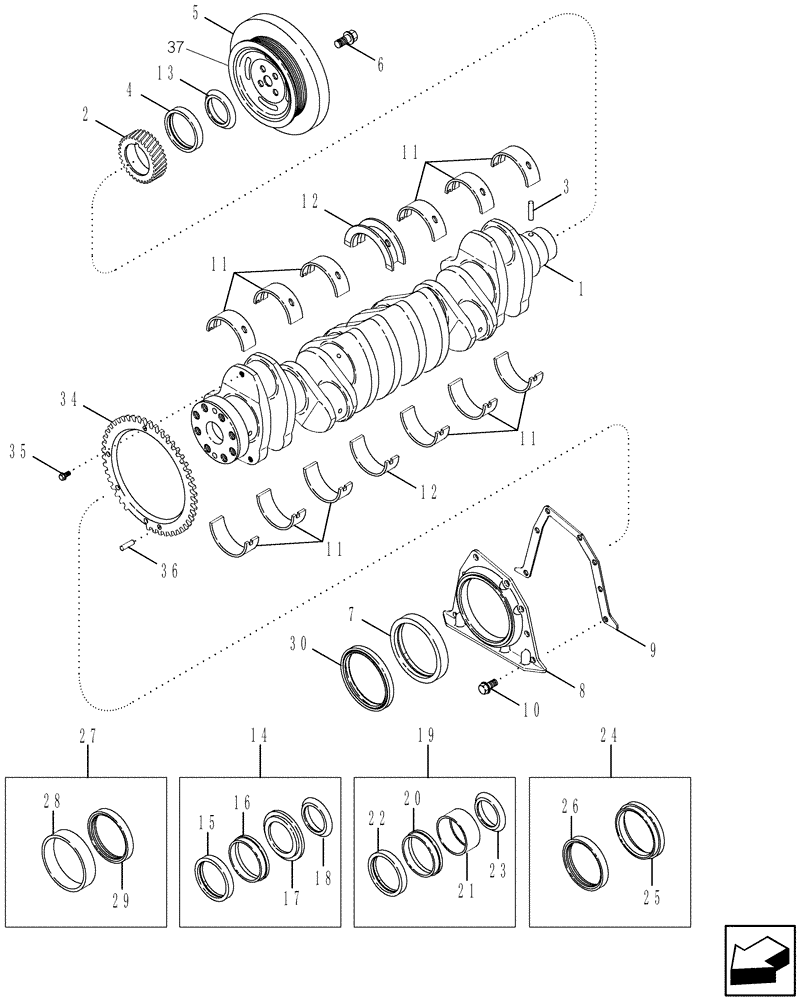

Запчасти Case IH 2588 (10.103.01) - CRANKSHAFT (10) - ENGINE

87342925

REMAN-CRANKSHAFT

1шт.

87335716R

REMAN-CRANKSHAFT

2588 ASN HAJ300001 (10/06-), Reman for New P/N 87342925

1шт.

87335716C

CORE-CRANKSHAFT

Return Number

1шт.

87337253

CORE-CRANKSHAFT

1шт.

1

87335716

CRANKSHAFT

1шт.

87335716R

REMAN-CRANKSHAFT

2588 ASN HAJ300001 (10/06-)

1шт.

87335716C

CORE-CRANKSHAFT

Return Number

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order P/N A77790, Ref 14

1шт.

5

87349482

DAMPER,279.5mm OD

*kit

1шт.

6

J914118

FLANGE BOLT,Hex, M14 x 1.5 x 60mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order P/N J934486, Ref 24

1шт.

8

J933384

REAR COVER

1шт.

9

J914301

GASKET

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10,9

8шт.

11

J945930

BEARING SET

Main, Standard

6шт.

11

J945931

BEARING SET

Main, Undersize 0.25 mm

6шт.

11

J945932

BEARING SET

Main, Undersize 0.50 mm

6шт.

11

J945933

BEARING SET

Main, Undersize 0.75 mm

6шт.

11

J945934

BEARING SET

Main, Undersize 1.00 mm

6шт.

12

J945929

THRUST BEARING

Thrust, Standard

1шт.

12

J945922

THRUST BEARING

Thrust, Undersize 0.25 mm

1шт.

12

J945923

THRUST BEARING

Thrust, Undersize 0.50 mm

1шт.

12

J945924

THRUST BEARING

Thrust, Undersize 0.75 mm

1шт.

12

J945925

THRUST BEARING

Thrust, Undersize 1.00 mm

1шт.

12

J945926

THRUST BEARING

Thrust, Standard, Oversize 0.25 mm

1шт.

12

J945927

THRUST BEARING

Thrust, Standard, Oversize 0.50 mm

1шт.

12

J945928

THRUST BEARING

Thrust, Undersize 0.50 mm, Oversize 0.50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order P/N A77790, Ref 14

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Incl 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

17

NSS

NOT SOLD SEPARAT

TOOL

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Incl 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Incl 24A, 25, 26

1шт.

24a

NSS

NOT SOLD SEPARAT

TOOL (Not Shown)

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Incl 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL

1шт.

30

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

Dust

1шт.

87444550

KIT

Dust Excluder, Incl 31-33

1шт.

31

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

32

NSS

NOT SOLD SEPARAT

SPACER

1шт.

33

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

34

87335719

RING

Speed Indicator

1шт.

35

87335729

BOLT

M6 x 1 x 12

4шт.

36

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

37

J943660

PULLEY

1шт.
