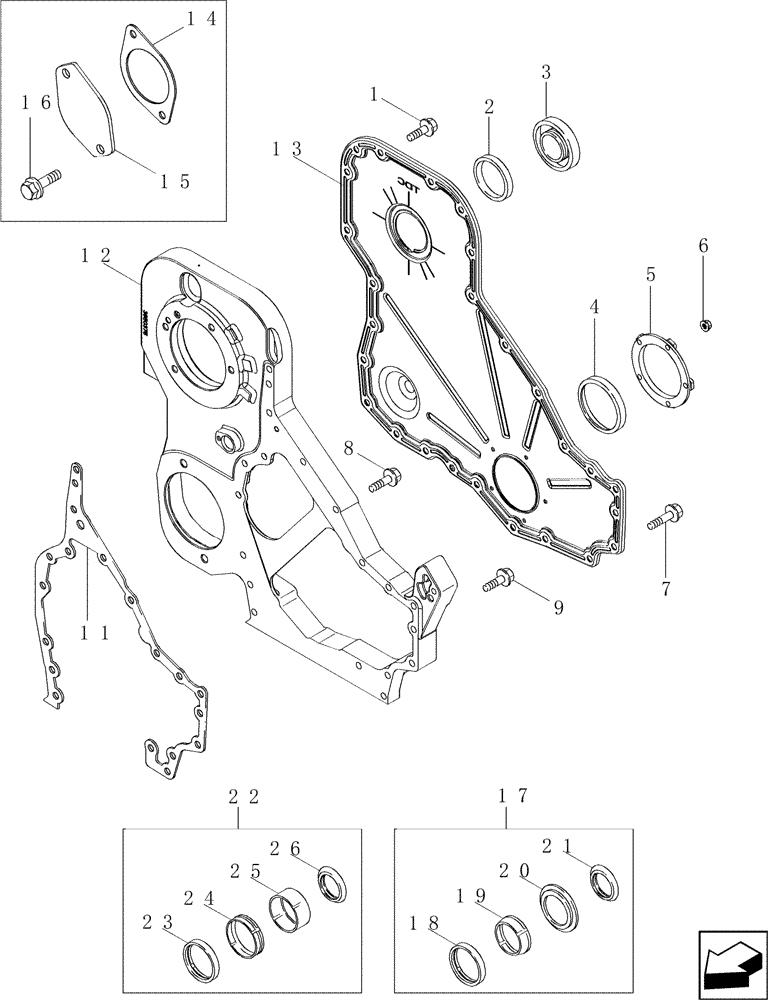

Запчасти Case IH 2588 (10.102.03) - FRONT GEAR COVER (10) - ENGINE

1

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

15шт.

2

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

3

J903463

PLUG,M63 x 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order P/N A77790 Or P/N A77808

1шт.

5

J941786

CARRIER

1шт.

6

87493304

FLANGE NUT

M6

5шт.

7

J926863

FLANGE BOLT

M8 x 50

11шт.

8

J943885

BOLT

M8 x 40

3шт.

9

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J944293

GASKET,1.01mm Thk

1шт.

12

87564445

COVER

1шт.

13

87350310

COVER

1шт.

14

J940245

GASKET,1.27mm Thk

1шт.

15

J940246

COVER

Accessory Drive

1шт.

16

857-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

A77790

SEAL KIT

Crankshaft, Front, Incl 22 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL

1шт.

20

NSS

NOT SOLD SEPARAT

TOOL

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

22

A77808

SERVICE KIT

Crankshaft, Front, Incl 27 - 29

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL, Oil, Oversized

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL

1шт.

26

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

27

J920706

PLUG

Not Shown

1шт.

28

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Not Shown

2шт.

29

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC Not Shown

1шт.
