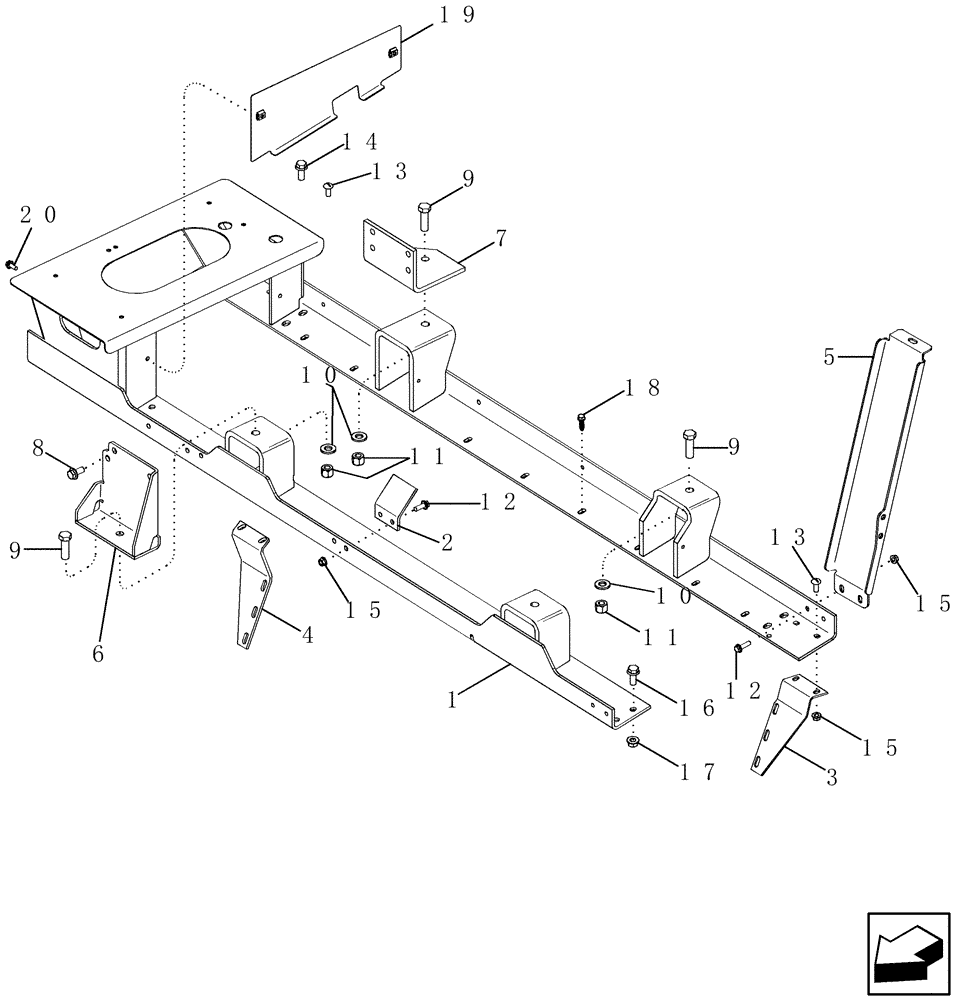

Запчасти Case IH 2588 (10.012.03[02]) - MOUNTING, ENGINE - ASN HAJ303001 (10) - ENGINE

1

87634172

ENGINE MOUNT

1шт.

2

1977212C1

BRACKET

Oil Drain Shield

1шт.

3

1330098C2

SUPPORT

Separator Side

1шт.

4

87416055

SUPPORT

Separator Side

1шт.

5

237714A1

SUPPORT

Rear Engine Deck

1шт.

6

87637847

BRACKET

Engine, Front

1шт.

7

400752A1

BRACKET

Engine Front, RH

1шт.

8

857-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

8шт.

9

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

10

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

4шт.

11

231-41110

LOCK NUT,5/8"-11, GB

4шт.

12

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3шт.

14

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

15

231-5146

FLANGE NUT,3/8"-16

12шт.

16

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

8шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

18

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

8шт.

19

NSS

NOT SOLD SEPARAT

SHEET, Block Off With Rivet Nuts

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.
