Запчасти Case IH 2588 (10.012.03[01]) - MOUNTING, ENGINE - BSN HAJ303001 (10) - ENGINE

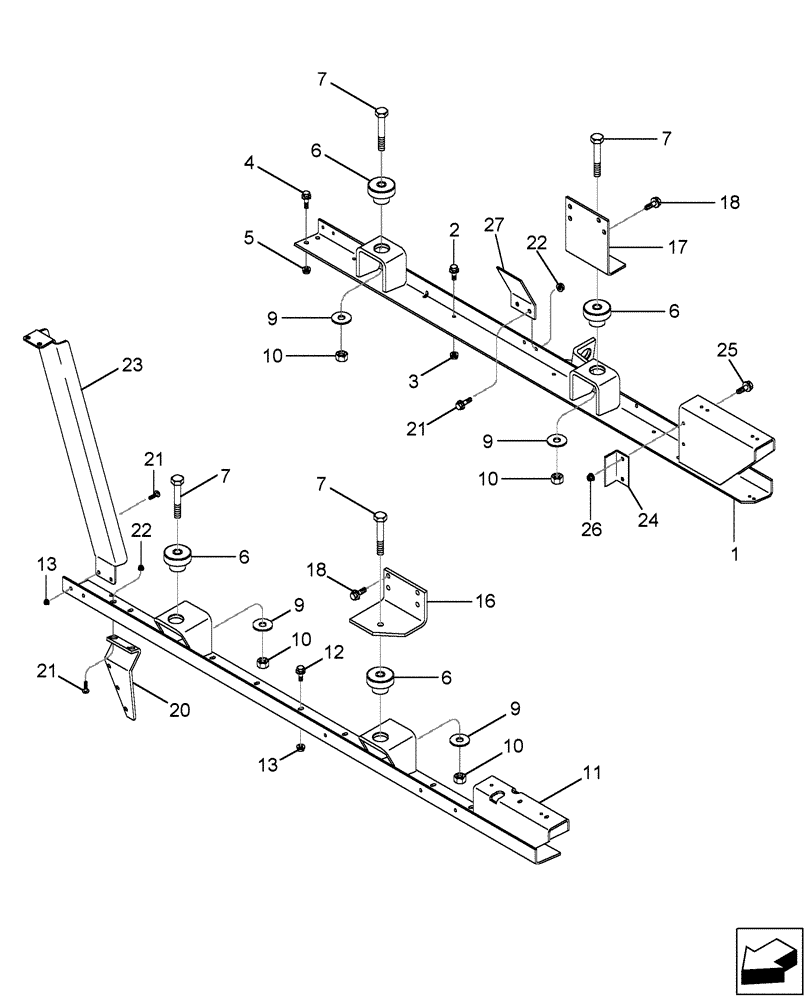

Схема запчастей Case IH 2588 - (10.012.03[01]) - MOUNTING, ENGINE - BSN HAJ303001 (10) - ENGINE
21
7
5
21
24
10
3
18
7
6
4
9
1
10
26
10
2
21
7
18
6
6
10
7
16
23
22
9
13
12
27
17
9
11
6
25
9
13
22
20

Артикул

Название

Примечание

Количество

1

87309818

ENGINE MOUNT

LH

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

8

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

8шт.

9

107813R1

WASHER

21/32" x 2-1/2" x 11/64"

4шт.

10

231-41110

LOCK NUT,5/8"-11, GB

4шт.

11

87427481

HANDRAIL

RH

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

9шт.

13

231-5146

FLANGE NUT,3/8"-16

9шт.

14

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

16

400752A1

BRACKET

RH, Front

1шт.

17

400753A1

BRACKET

LH, Front

1шт.

18

857-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

8шт.

19

1330098C2

SUPPORT

LH

1шт.

20

87416055

SUPPORT

RH

1шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.

23

237714A1

SUPPORT

Rear Engine Deck

1шт.

24

86985754

SUPPORT

2шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

27

1977212C1

BRACKET

Oil Drain Shield

1шт.

28

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.

Выбрано товаров: 28
