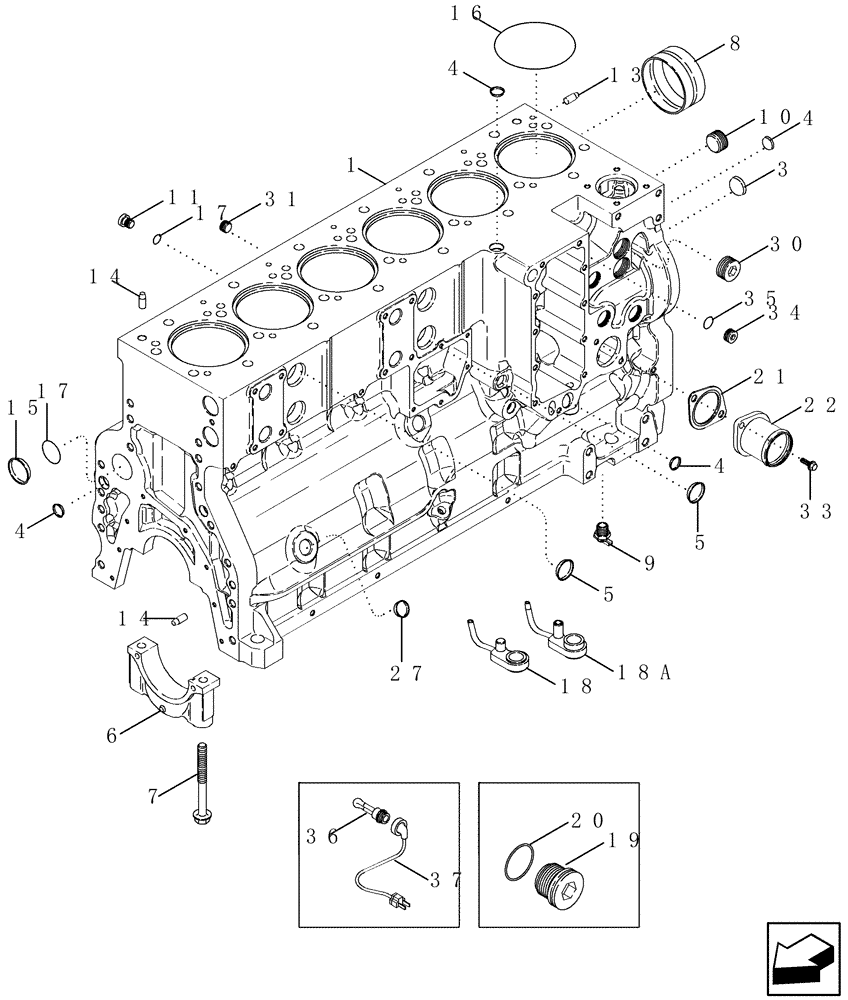

Запчасти Case IH 2588 (10.001.03) - CYLINDER BLOCK - ENGINE BLOCK HEATERS (10) - ENGINE

87351542

BASIC ENGINE

Service, Tier 3

1шт.

87351542R

REMAN-BASIC ENGINE

1шт.

87351542C

CORE-BASIC ENGINE

Return Number

1шт.

Basic Engines and Reman Engines Are Generic Engines, All Parts Are Not Supplied With The Engines. Check The Configuration Of The Engine Being Removed, With The Configuration Of The Engine Being Installed. For Any Components Not Supplied With The Engine Being Installed, Reuse Those Parts From The Engine That Has Just Been Removed. Do Not Return The Old Engine, Until The Unit Is Reassembled

1шт.

Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler

1шт.

87390942

SHORT ENGINE

1шт.

87390942C

CORE-SHORT ENGINE

1шт.

87390942R

REMAN-SHORT ENGINE

1шт.

1

84165305

CYLINDER BLOCK

Short, Incl 2 - 8

1шт.

Stripped Short Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

3

A77586

PLUG

28.9 mm

3шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

87338079

KIT

Incl 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4" PT

2шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Incl 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

4шт.

14

J901846

PIN,12.01mm OD x 24mm L

8шт.

15

41-3044

PLUG,Exp, 2 3/4"

2шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

2шт.

18

87739191

NOZZLE

6шт.

18a

87673839

NOZZLE

12шт.

19

J678921

PLUG

14 mm, Incl 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J913030

FITTING

Water Inlet

1шт.

27

A77530

PLUG

1-13/64" OD

4шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

5шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

6шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

Hex Socket, 22 mm, Incl 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

310493A1

KIT

Engine Block Heater, 120 Volt, Incl 36 - 37

1шт.

36

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72")

1шт.

37

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

310494A1

KIT

Coolant Heater, 240V, Incl 36 - 37

1шт.

36

J913112

WIRE HARNESS

305 mm (12")

1шт.

37

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

87348859

ENGINE OVERHAUL KIT

(Not Shown)

1шт.

41

J900956

PLUG

(Not Shown)

3шт.

42

87338185

BOLT

(Not Shown)

1шт.

43

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

(Not Shown)

1шт.

44

87337018

BOLT

(Not Shown)

6шт.

45

J678923

PLUG,M10 x 1

(Not Shown)

6шт.

46

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

(Not shown)

1шт.

47

J678921

PLUG

(Not Shown)

1шт.

48

J678912

O-RING,2.2mm Thk x 11.3mm ID

(Not Shown)

1шт.

49

A77586

PLUG

(Not Shown)

3шт.

50

J909025

FLANGE BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

M8 x 1.25 x 55 (Not Shown)

6шт.

87307606

ENGINE

Engine 2588, 6CTAA-830, 280HP

1шт.

87307606C

CORE-EPA ENGINE

Return Number, For N.A. Only

1шт.
