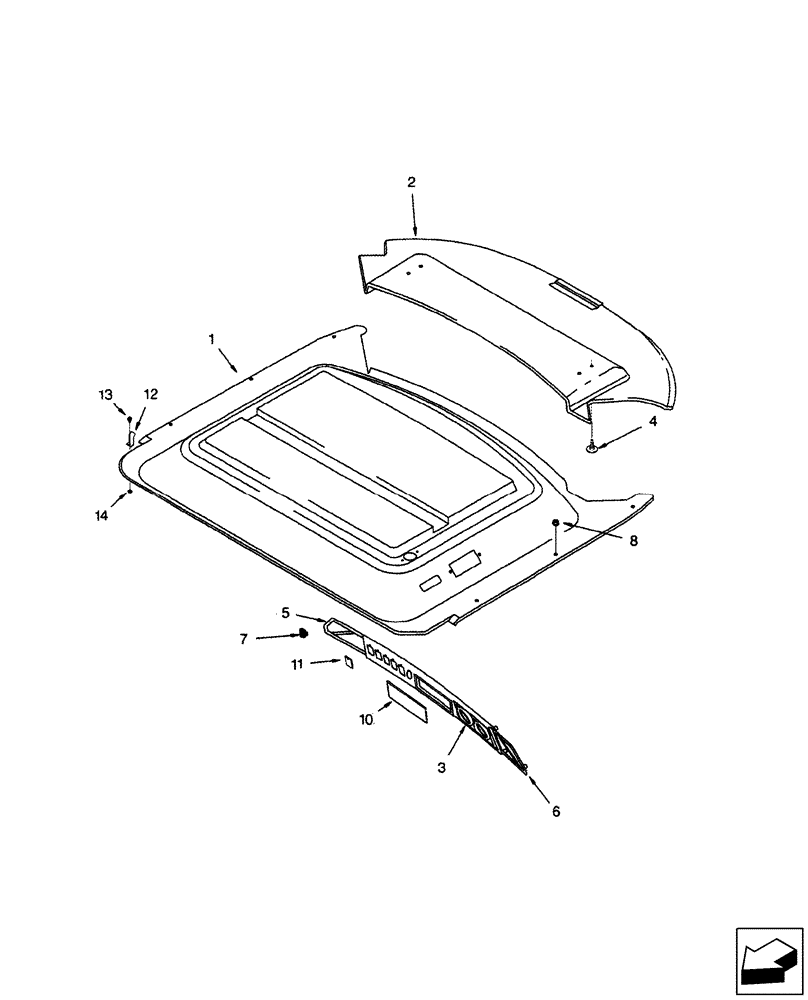

Запчасти Case IH 2588 (90.160.03) - CAB - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87363445

ROOF LINING

Rear

1шт.

2

87363444

ROOF LINING

Front

1шт.

3

87309490

PANEL

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

5

1971229C2

COVER

LH

1шт.

6

1971349C2

COVER

RH

1шт.

7

97058C1

CLIP

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

10

87105189

COVER

1шт.

Used On Models Without a Radio

1шт.

11

245918C1

LENS

Blank Slot

1шт.

12

87718124

CLIP

2шт.

13

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.
