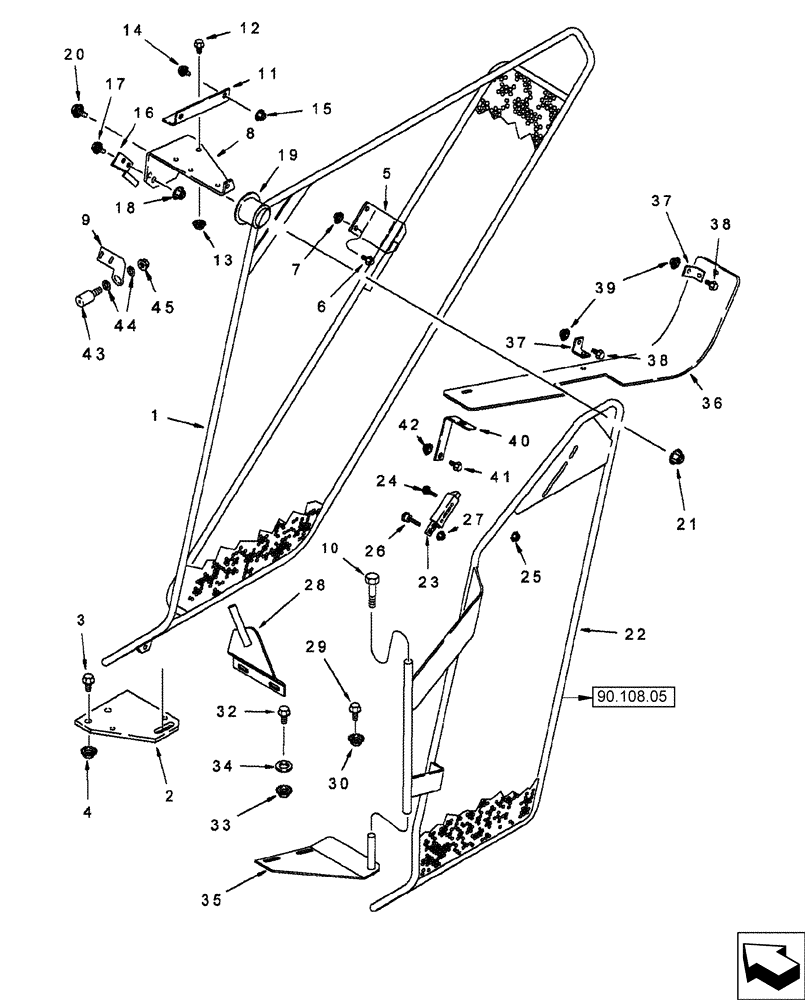

Запчасти Case IH 2588 (90.118.28) - SHIELD, FAN INLET - DOOR - RIGHT-HAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

142443A2

SHIELD

1шт.

Models With Wheels

1шт.

1

226463A1

SHIELD

1шт.

Models With Track Attachment

1шт.

2

142450A2

SUPPORT

Lower

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

5

142451A2

SUPPORT

Side

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

8

142452A2

SUPPORT

Upper

1шт.

9

182240A2

BRACKET

1шт.

10

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

142453A1

ANGLE

1шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

142454A1

BRACKET

1шт.

17

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

142455A1

TUBE,13.5 mm ID

1шт.

20

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

22

368361A1

GUARD

Incl Decals 181595A1, 184094A1, & 184094A1. Must Also Order 356467A1, Ref 28 & 360482A1, Ref 35 From This Section

1шт.

Models With Wheels

1шт.

22

368376A1

GUARD

Incl Decals 181595A1, 184094A1, & 184094A1. Also Order 356467A1, Ref 28 & 360482A1, Ref 35 From This Section

1шт.

Models With Track Attachment

1шт.

23

142588A1

LOCK

1шт.

24

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

96860C1

KNOB

1шт.

27

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

28

356467A1

SUPPORT

RH Upper, Door

1шт.

29

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

30a

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

Not Shown

2шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

34

495-21044

WASHER,3/8"

2шт.

35

360482A1

SUPPORT

Lower RH

1шт.

36

142477A2

SHEET

1шт.

37

142478A2

BRACKET

2шт.

38

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

40

182838A2

PLATE

1шт.

41

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

43

282145A1

SPECIAL BOLT,1/2" - 13 x 3/4", Grade 8

1шт.

44

495-21050

WASHER,7/16"

1шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

46

495-11034

WASHER,5/16", SAE

2шт.
