Запчасти Case IH 2588 (90.118.20) - HAND RAILS - DECK, SERVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS

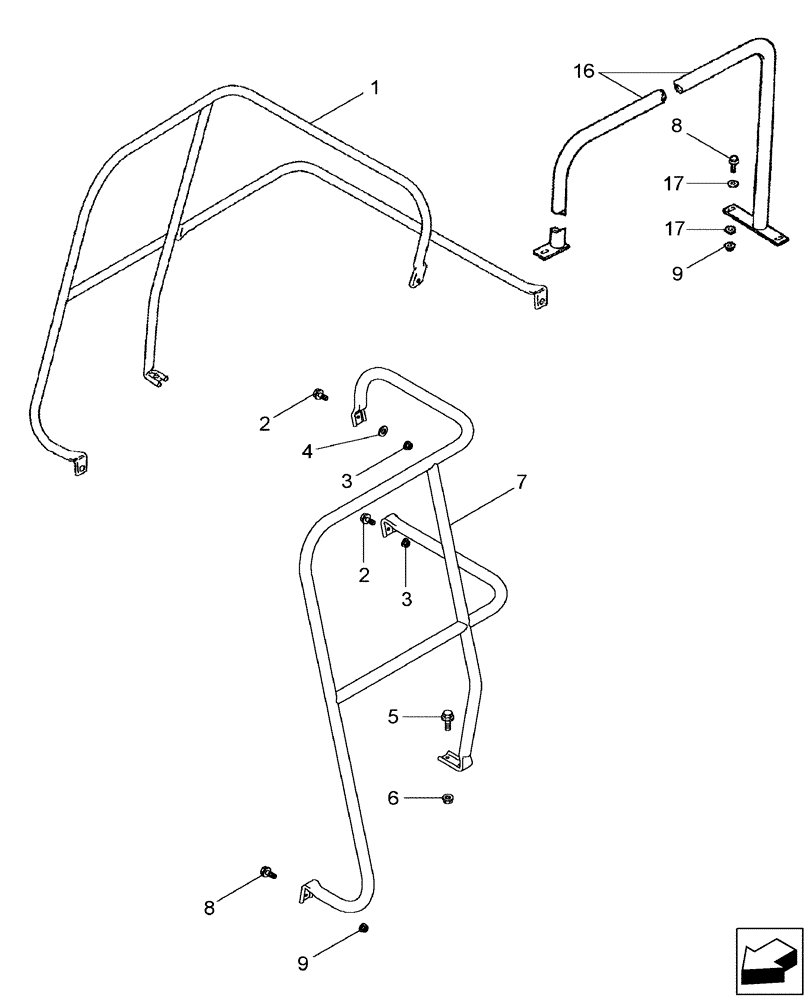

Схема запчастей Case IH 2588 - (90.118.20) - HAND RAILS - DECK, SERVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
3
17
9
3
8
16
8
2
5
4
1
9
2
17
7

Артикул

Название

Примечание

Количество

1

87547887

RAMP

LH

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

495-81121

WASHER,.344" x 1 1/2" x .060"

1шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

3шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

7

87547889

HANDRAIL

RH

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

11

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

3шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

16

87547891

RAMP

Australia Only

1шт.

17

495-11034

WASHER,5/16", SAE

6шт.

18

495-81024

WASHER,17/32" x 1 1/4" x .060"

2шт.

Выбрано товаров: 16
