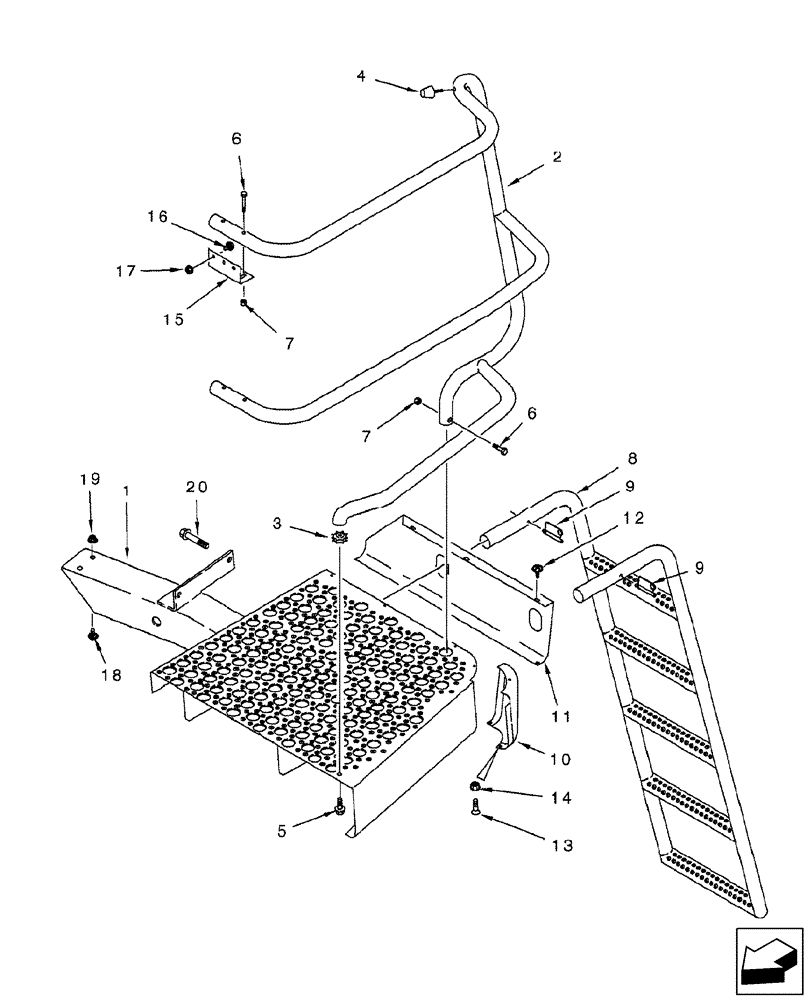

Запчасти Case IH 2588 (90.118.12[02]) - PLATFORM - LADDER, RIGHT HAND (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87386694

PLATFORM ASSY.

RH, Serial Range: -HAJ301503

1шт.

1

87614880

PLATFORM ASSY.

RH, Start Serial: HAJ301503

1шт.

2

87547885

HANDRAIL

RH

1шт.

3

140225A2

TUBE,17.4 mm Length

1шт.

4

87109195

BUMPER,5/16" - 18, 38mm OD

1шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

6

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5шт.

7

231-1445

NUT,5/16"-18, GB

5шт.

8

87547883

LADDER

RH

1шт.

9

1338021C1

PIN,7.94mm OD

2шт.

10

118938A1

SUPPORT

RH, Corner

1шт.

11

118937A2

SUPPORT

RH Front

1шт.

12

282-1448

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

15

141049A2

SUPPORT

2шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

19

231-5146

FLANGE NUT,3/8"-16

2шт.

20

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.
