(00.500.03) - KIT ENGINE OVERHAUL

Запчасти Case IH 2588 (00.500.03) - KIT ENGINE OVERHAUL (00) - GENERAL & PICTORIAL INDEX

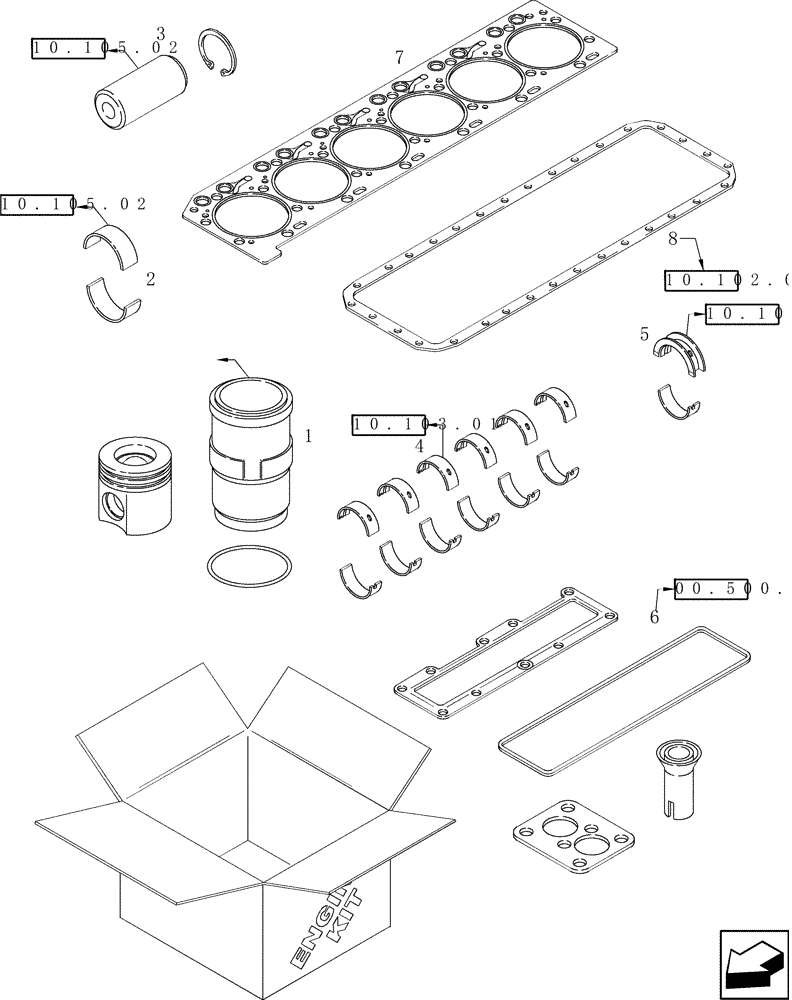

Схема запчастей Case IH 2588 - (00.500.03) - KIT ENGINE OVERHAUL (00) - GENERAL & PICTORIAL INDEX
7
6
10.102.01
10.103.01
10.103.01
3
8
5
2
00.500.02
10.105.02
10.105.02
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87348859

ENGINE OVERHAUL KIT

Incl 1 - 7

1шт.

1

87343262

KIT

6шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

3

87342670

PISTON PIN

6шт.

4

J945930

BEARING SET

Main, Standard

6шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

6

87348974

GASKET KIT

Valve Grind

1шт.

7

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

8

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

Выбрано товаров: 9
