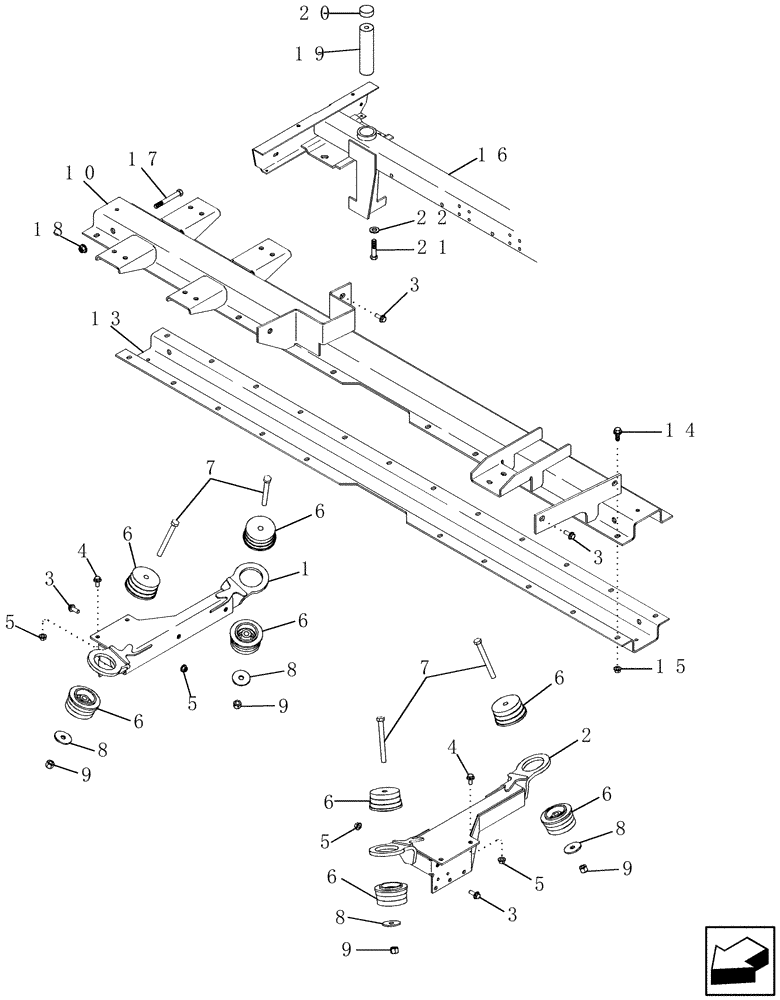

Запчасти Case IH 2588 (90.118.05) - PLATFORM SUPPORT - LADDER PIVOT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87386691

MOUNTING PARTS

Cab, LH

1шт.

2

87386692

MOUNTING PARTS

Cab, RH

1шт.

3

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

15шт.

4

87343550

FLANGE BOLT,Hex, M12 x 25mm

4шт.

5

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

6

123566A1

ISOLATOR

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

4шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

4шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

10

87386693

CHANNEL

LH

1шт.

13

182648A1

SUPPORT

LH

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

23шт.

15

231-5146

FLANGE NUT,3/8"-16

23шт.

324547A2

BEAM ASSY.

Incl Refs 16, 16A

1шт.

16

87609277

BEAM ASSY.

LH

1шт.

16a

191129A1

WARNING DECAL

Not Shown

1шт.

17

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

1шт.

19

320946A1

PIN,50.81mm OD x 311.2mm L

1шт.

20

324464A1

PLUG

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

22

495-21044

WASHER,3/8"

1шт.
