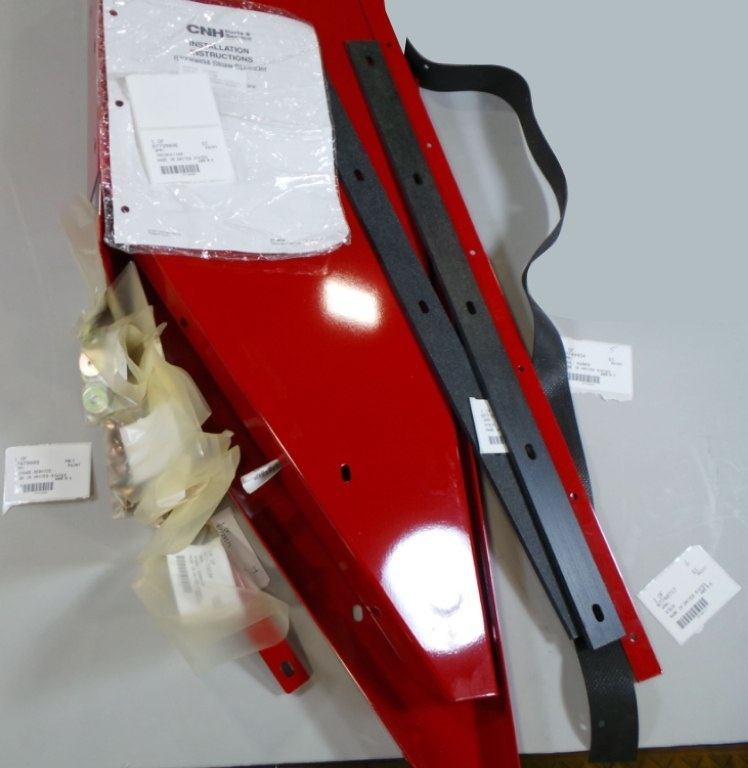

Запчасти Case IH 2588 (88.466.01) - KIT STRAW SPREADER WITHOUT CURTAIN (88) - ACCESSORIES

1

87479409

PACKAGE,SERVICE

Incl 2 - 16

1шт.

2

87755498

INSTRUCTION

1шт.

3

87740495

SHIELD

RH

1шт.

4

87740496

SHIELD

LH

1шт.

5

87738710

STRIP

2шт.

6

87739171

BRACKET

2шт.

7

87740454

RUBBER SEAL

1шт.

8

87740717

STRIP

1шт.

9

151-573

RIVET,Pop, 4.75mm OD x 14.61mm L

7шт.

10

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

11

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

2шт.

13

86632582

WASHER,0.34" ID x 1" OD x 0.06" Thk

15шт.

14

145458

SERRATED NUT,5/16"-18 GR 5 ZND

18шт.

15

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

12шт.

16

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

4шт.
