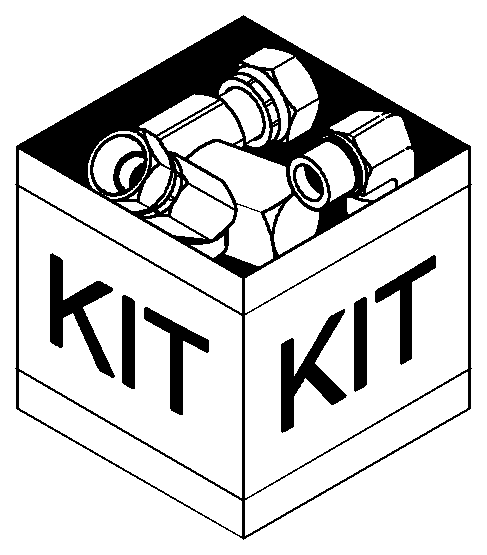

Запчасти Case IH 2588 (88.460.07) - KIT SPREADER TALL 80 (88) - ACCESSORIES

1

B95224

KIT

Incl 2 - 15

1шт.

2

120270A2

PIN,9.52mm OD x 78mm L

2шт.

3

140189A1

DISC

2шт.

4

188218C6

CONE,Spreader Support

2шт.

5

1994772C1

PULLEY

1шт.

6

231-5315

FLANGE NUT,Flg, 5/16"-18

18шт.

7

232-4115

LOCK NUT,5/16"-18, GC

1шт.

8

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

9

321372A1

BAT

6шт.

10

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

1шт.

11

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

12шт.

13

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

6шт.

14

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

6шт.

15

86508947

LINCH PIN,18.8mm OD

4шт.
