Запчасти Case IH 2588 (88.250.01) - HARNESS, YIELD MONITOR CAB DISPLAY, AFS (88) - ACCESSORIES

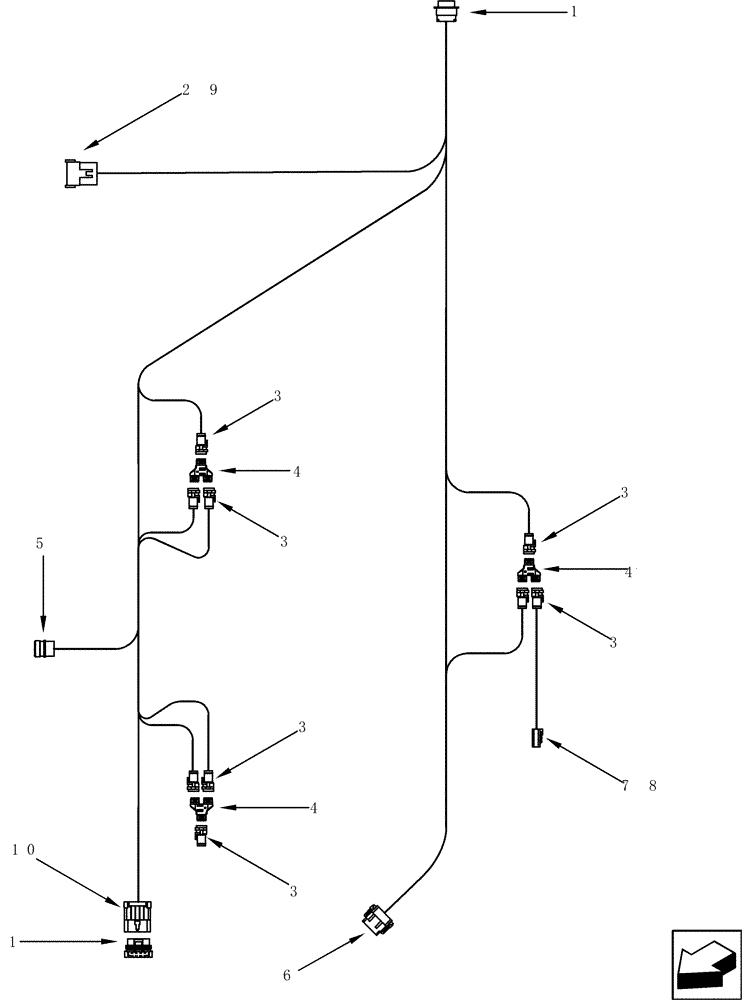

Схема запчастей Case IH 2588 - (88.250.01) - HARNESS, YIELD MONITOR CAB DISPLAY, AFS (88) - ACCESSORIES
5
3
3
4
11
3
6
4
4
9
1
3
2
8
3
10
3
7

Артикул

Название

Примечание

Количество

87384930

WIRE HARNESS

Yield Monitor Cab Display

1шт.

1

321698A1

ELEC CONNECTOR,Female, 14 Pin

1шт.

2

225388C1

ELEC CONNECTOR,Male, 12 Pin

Type NA

1шт.

3

298496A1

ELEC CONNECTOR,4 Pin

Plug, 4 Pin

6шт.

4

298495A1

ELEC CONNECTOR,4 Pin

2шт.

5

310057A1

ELEC CONNECTOR,Male, 9 Pin

HD 10 Series Receptacle

1шт.

6

87410948

CONTACT HOUSING,Female, 26 Pole

26 Pin Tyco

1шт.

7

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4-cav Plug DT Series

1шт.

8

225327C1

WEDGE,Lock, Black

1шт.

9

225390C1

WEDGE

Electrical Connector, Type W12P

1шт.

10

182081A1

TERMINAL CONNECTOR,Female, 5 Pin

Tower 5-way Metri-pak

1шт.

11

182079A1

TERMINAL CONNECTOR,Male, 5 Pin

1шт.

12

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

Not Shown

2шт.

13

492-11006

LOCK WASHER,#6

Not Shown

2шт.

14

225-14106

NUT,#6-32

Not Shown

2шт.

Выбрано товаров: 15
