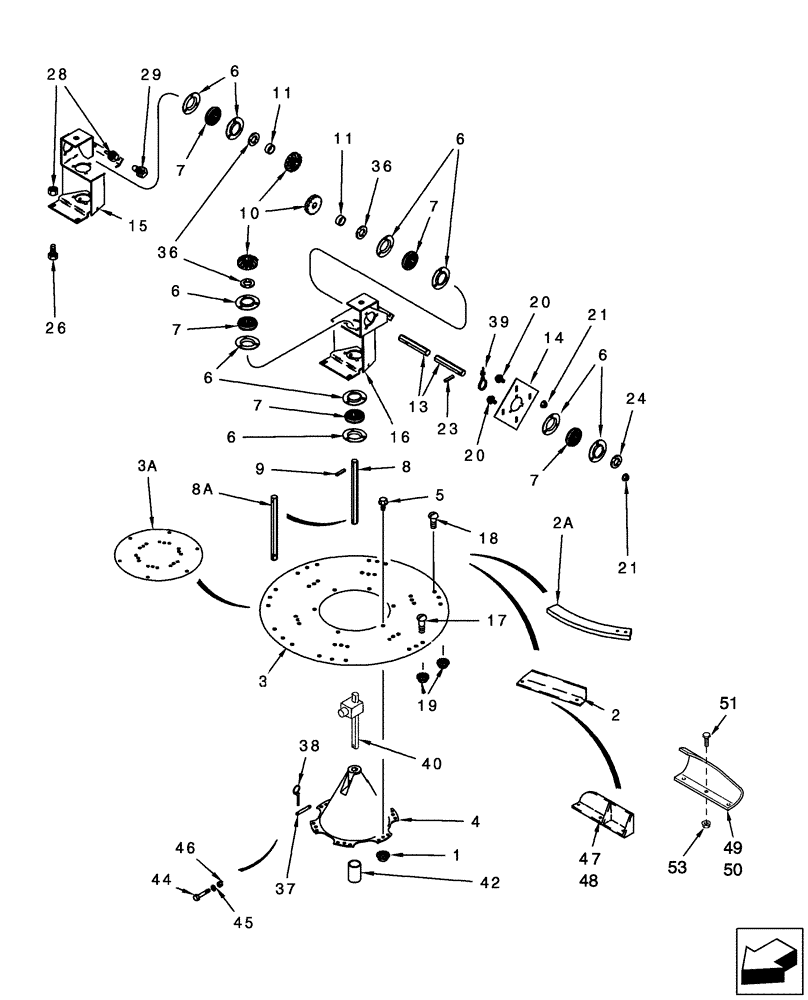

Запчасти Case IH 2588 (88.230.16) - STRAW SPREADER (88) - ACCESSORIES

1

231-5315

FLANGE NUT,Flg, 5/16"-18

Used W/2, 2B, 3, 3B

24шт.

2

103170A2

BAT

12шт.

With Straw and Chaff Spreader

1шт.

2a

1302790C1

STRIP

Rice

12шт.

With Straw Chopper

1шт.

3

140189A1

DISC

2шт.

With Straw and Chaff Spreader

1шт.

3a

1302791C1

RETAINER

Rice

2шт.

With Straw Chopper

1шт.

4

188218C6

CONE,Spreader Support

2шт.

5

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

Used W/2A, 3A

1шт.

5

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

Used W/2A, 3A

12шт.

6

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

14шт.

7

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

7шт.

8

128440A1

SHAFT

12", Grain, Rice

2шт.

With Straw Chopper

1шт.

8a

109485A1

SHAFT

12"

2шт.

With Straw and Chaff Spreader

1шт.

9

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

2шт.

10

194194C1

GEAR

14T

4шт.

11

87036414

SPACER,26.21mm ID x 31.75mm OD x 15.88mm L

2шт.

13

427270A1

SHAFT

1шт.

14

186506C1

SUPPORT

1шт.

15

109487A2

SUPPORT

LH

1шт.

16

109488A2

SUPPORT

RH

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

Used W/2, 3

6шт.

18

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

Used W/2, 3

18шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Used W/2, 3

24шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

28шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

29шт.

23

87040620

LOCK PIN,9.53mm OD x 38.1mm L, Slotted

1шт.

24

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

1шт.

26

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

29

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

4шт.

36

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

6шт.

37

120270A2

PIN,9.52mm OD x 78mm L

2шт.

With Straw Chopper

1шт.

38

A33497

LINCH PIN,4.76mm OD Pin

4шт.

With Straw Chopper

1шт.

39

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

6шт.

40

429194A1

COUPLING

2шт.

42

432330A1

TUBE

110 mm (4.33 in)

2шт.

43

140432A1

BOOT

2шт.

With Straw and Chaff Spreader

1шт.

44

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

With Straw and Chaff Spreader

1шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

With Straw and Chaff Spreader

1шт.

46

231-1446

NUT,3/8" - 16, Gr 5

2шт.

With Straw and Chaff Spreader

1шт.

47

321372A1

BAT

RH, Tall

3шт.

With Straw and Chaff Spreader

1шт.

48

321373A1

BAT

LH, Tall (Not Shown)

3шт.

With Straw and Chaff Spreader

1шт.

49

87324976

BAT

RH, Curved, Service Option Only, Serial Range: -HAJ303491

3шт.

49

87726624

BAT

RH, Curved, Service Option Only, Start Serial: HAJ303491

3шт.

50

87324975

BAT

LH, Curved, Service Option Only (Not Shown), Serial Range: -HAJ303491

3шт.

50

87726623

BAT

LH, Curved, Service Option Only (Not Shown), Start Serial: HAJ303491

3шт.

51

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

18шт.

52

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

53

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

18шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

400505A1

KIT

Incl Refs 49 - 54, Service Option Only

1шт.
