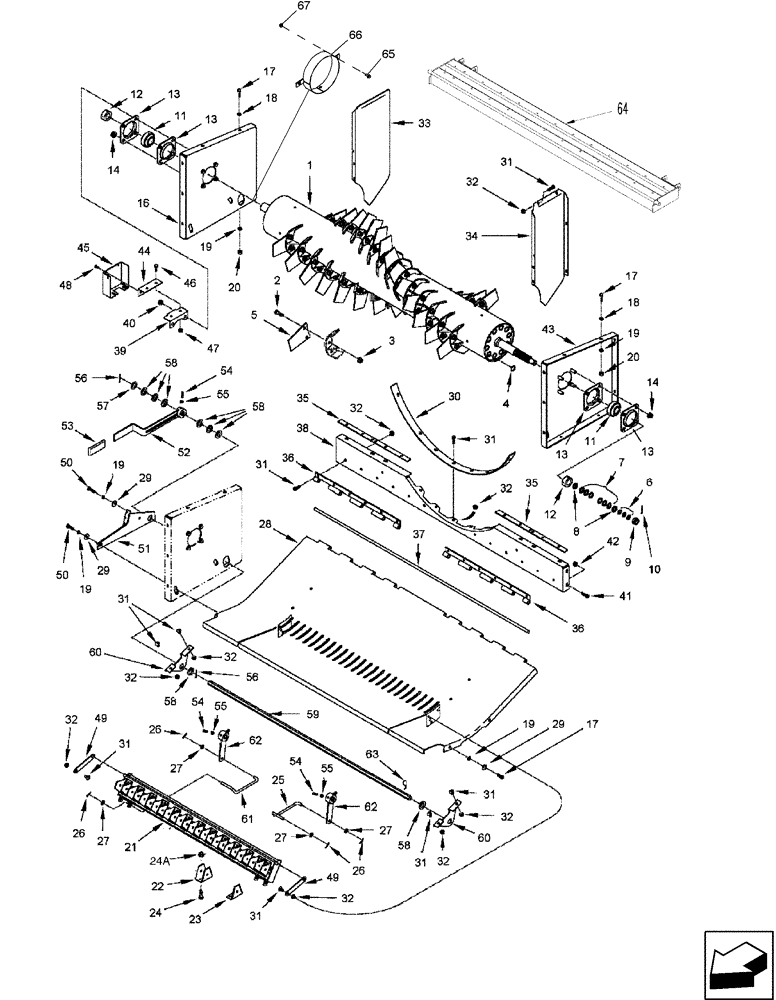

Запчасти Case IH 2588 (88.230.02) - STRAW CHOPPER - ROTOR AND CONCAVE (88) - ACCESSORIES

1

87316367

ROTOR ASSY.

Incl Refs 2 - 5, 9

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

4

1346984C1

PLUG

, Serial Range: -HAJ303100

18шт.

4

87109745

PLUG

, Start Serial: HAJ303100

18шт.

5

442832A1

SET OF BLADES

Chopper Rotor, Set Of 2, Includes Hardware

1шт.

6

87629039

WASHER,0.91" ID x 1.5" OD x 0.12" Thk

4шт.

6

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

1шт.

7

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

5шт.

8

87614520

SPACER

1шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

11

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

2шт.

12

87313329

COLLAR

2шт.

13

1307583C1

FLANGED BEARING

Square, Optional With P/N 663562R1

4шт.

13

663562R1

FLANGE

Round, Optional With P/N 1307583C1

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

12шт.

16

144700A2

SUPPORT

LH, Serial Range: -HAJ303100

1шт.

16

87649887

SUPPORT ASSY.

LH, Start Serial: HAJ303100

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

17

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

8шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

16шт.

19

492-11038

LOCK WASHER,3/8"

20шт.

20

425-106

NUT,3/8"-16, Cl 5

8шт.

20

231-5146

FLANGE NUT,3/8"-16

8шт.

21

87323280

PACKAGE

Incl Refs 22 - 24A

1шт.

22

87315088

BLADE

12шт.

23

87315089

BLADE

Concave End

1шт.

24

412-412

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 3/4", Gr 2

26шт.

24a

231-5344

FLANGE NUT,Flg, 1/4"-20

26шт.

25

395513A1

ROD

RH

1шт.

26

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

28

181147C4

BOTTOM

1шт.

29

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

30

182950C1

SUPPORT

Rear

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

27шт.

32

231-5146

FLANGE NUT,3/8"-16

27шт.

33

182948C2

DEFLECTOR

LH

1шт.

34

182949C2

DEFLECTOR

RH

1шт.

35

182895C1

FILLER

2шт.

36

182893C1

HINGE

2шт.

37

182980C1

ROD,11.11mm OD x 1556mm L

1шт.

38

182931C1

SUPPORT

Rear

1шт.

39

144706A4

SUPPORT

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

14шт.

42

231-5146

FLANGE NUT,3/8"-16

14шт.

43

144701A1

SIDE PLATE

Rotor, RH, Serial Range: -HAJ303100

1шт.

43

87649889

SUPPORT ASSY.

Rotor, RH, Start Serial: HAJ303100

1шт.

44

248583A1

SUPPORT

Sensor, Outer, Australia Only

1шт.

45

181208C3

SUPPORT

Sensor, Australia Only

1шт.

46

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

Australia Only

2шт.

47

425-104

NUT,1/4"-20, Cl 5

Australia Only

2шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

Australia Only

2шт.

49

391218A1

STRAP

2шт.

50

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

51

396337A1

PLATE

1шт.

52

396277A1

SHAFT

1шт.

53

402987A1

GRIP

1шт.

54

485-13116

SET SCREW,Sq Hd, 5/16"-18 x 1", Cup pt

6шт.

55

425-105

NUT,5/16"-18, G5

6шт.

56

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

57

495-81056

WASHER,29/32" x 1 1/2" x 3/64

1шт.

58

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

1шт.

59

391221A1

SHAFT

1шт.

60

391229A1

SUPPORT

2шт.

61

391222A1

ROD

LH

1шт.

62

391230A1

PIVOT

2шт.

63

480523R1

HAIR PIN COTTER

1шт.

64

418493A1

BAR

Chopper Concave

1шт.

65

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Chopper Drum Wrap Support, Start Serial: HAJ303100

4шт.

66

87693310

SUPPORT ASSY.

Chopper Drum Wrap, Start Serial: HAJ303100

2шт.

67

87681210

FLANGE NUT,M8 x 1.25, Cl 10

Chopper Drum Wrap Support, Start Serial: HAJ303100

4шт.
