Запчасти Case IH 2588 (80.180.08) - UNLOADER - TUBE, UPPER AND LOWER (80) - CROP STORAGE/UNLOADING

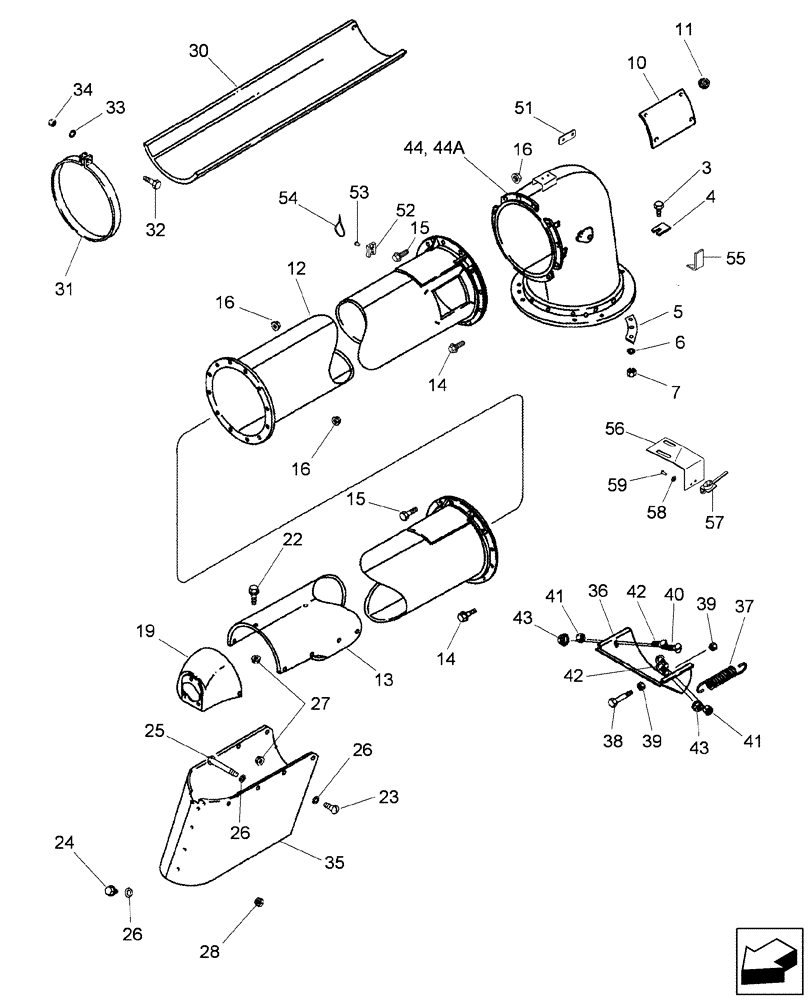

Схема запчастей Case IH 2588 - (80.180.08) - UNLOADER - TUBE, UPPER AND LOWER (80) - CROP STORAGE/UNLOADING
19
41
26
34
59
37
44
16
7
16
7
58
55
15
14
57
56
53
25
24
39
26
44a
51
28
12
3
38
42
42
6
40
54
41
39
5
36
15
26
31
32
14
52
35
16
43
22
33
4
10
11
43
3
30
23

Артикул

Название

Примечание

Количество

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

4

151670C1

SHIM

0.036"

1шт.

5

87593300

BAR

1шт.

6

492-11038

LOCK WASHER,3/8"

6шт.

7

425-106

NUT,3/8"-16, Cl 5

6шт.

10

178158C1

PLATE

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

87557135

UNLOADING TUBE,3202 mm L

Solid, Front, 5.5 m and 6.4 m Unloader, Incl Ref 12A

1шт.

12

87557138

TUBE,3202 mm L

Perforated, Front, 5.5 m and 6.4 m Unloader, Incl Ref 12A

1шт.

13

87581654

UNLOADING TUBE,317.5 mm OD x 3012 mm L

Rear, 6.4 m Unloader

1шт.

13

87581650

TUBE,317.5 mm OD x 2098 mm L

Rear, 5.5 m Unloader

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

12шт.

15

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

12шт.

16

231-5146

FLANGE NUT,3/8"-16

24шт.

19

182837C2

CAP

Support

1шт.

23

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4-6шт.

22

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

7шт.

25

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

26

495-81121

WASHER,.344" x 1 1/2" x .060"

22шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

28

231-4115

NUT,5/16"-18, GB

4шт.

30

178165C2

COVER

Perforated

1шт.

31

178166C1

CLAMP

Perforated

4шт.

32

185856C1

ADJUSTMENT SCREW

5/16" x 2"

4шт.

33

492-11031

LOCK WASHER,5/16"

4шт.

34

425-105

NUT,5/16"-18, G5

4шт.

35

113488A1

SPOUT, DISCHARGE

SPOUT Down

1шт.

36

115867A1

DOOR

Grain Saver

1шт.

37

1338869C2

SPRING,162mm Free Length

2шт.

38

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

1шт.

39

231-5146

FLANGE NUT,3/8"-16

2шт.

40

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

4шт.

42

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

44

87598258

ELBOW,Unloader, Upper

ELBOW-CONECTION Incl Refs 45 - 47, Standard Wear

1шт.

44a

87598255

ELBOW

ELBOW-CONECTION Incl Refs 45 - 47, Extended Wear

1шт.

45

87598260

ELBOW-CONNECTION

ELBOW-CONECTION

1шт.

46

49-516

RIVET,Tr Hd, 5/16" x 1"

Not Shown

20шт.

47

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

Not Shown

3шт.

48

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Not Shown

3шт.

49

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

Not Shown

3шт.

50

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Not Shown

7шт.

51

87577375

BRACKET

Lube Line

1шт.

52

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

53

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

1шт.

54

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

55

1338004C2

BRACKET

Unloader Limit Switch

1шт.

56

1338003C1

BRACKET

Limit

1шт.

57

537641R2

SWITCH ASSY

1шт.

58

493-81000

LOCK WASHER,Ext-Int Tooth, #10

2шт.

59

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

Выбрано товаров: 53
