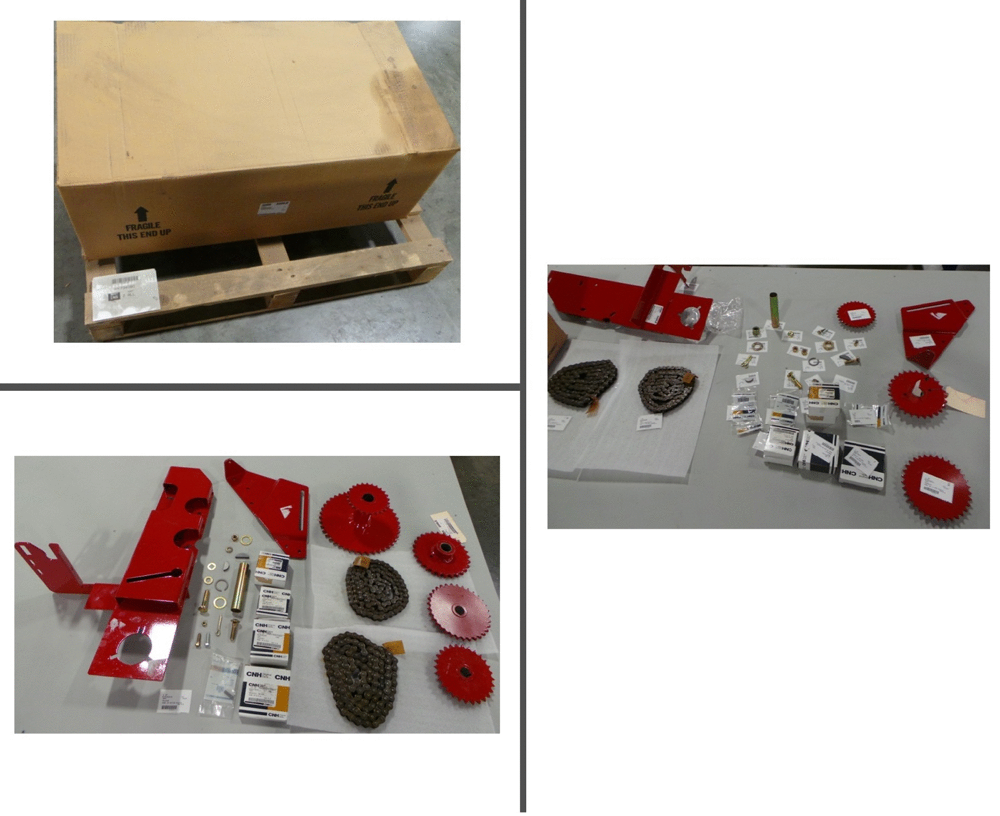

Запчасти Case IH 2588 (80.175.06) - KIT 2.4 BU/SEC HD UNLOADER DRIVE (80) - CROP STORAGE/UNLOADING

1

87535919

SERVICE KIT

Incl 2 - 30

1шт.

2

87525825

SPROCKET

28T

1шт.

3

87525831

SPROCKET

33T

2шт.

4

87525821

SPROCKET

43T/25T

1шт.

5

87529597

CHAIN (AG),#60, 107 Links x 19.05mm = 2057.4mm

Vertical Auger Drive

1шт.

6

87529598

CHAIN (AG),#50, 124 Links x 15.88mm = 1968.5mm

Lower Grain Tank Cross Auger Drive

1шт.

7

87529286

SUPPORT ASSY.

Cross Auger Drive Idler

1шт.

8

86627870

DRIVEN SPROCKET,15T

1шт.

9

87302107

SPROCKET

17T

1шт.

10

280435

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1шт.

11

280185

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

12

280431

NUT,1/2"-13, G5

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

14

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

8шт.

15

498-81005

SQ HOLE WASHER,13.49mm ID x 25.4mm OD x 1.52mm Thk

5шт.

16

A21619

CIRCLIP

1шт.

17

1327731C1

THRUST WASHER

2шт.

18

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

2шт.

19

87831

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

20

242628A1

BOLT, SHEAR,Hex, 5/16" x 1 1/4", Gr 2

2шт.

21

86050277

NUT,5/16"-18, GB

2шт.

22

87529284

SUPPORT ASSY.

Jackshaft

1шт.

23

84330041

BALL BEARING,31.75mm ID x 72mm OD x 19mm W

2шт.

24

47508357

COLLAR

2шт.

25

80753

COTTER PIN,1/4" x 1 1/2"

2шт.

26

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

4шт.

27

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

4шт.

28

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

29

87331922

SPACER

1шт.

29

Q53

KEY,1/4" Sq x 1", Par

2шт.
