Запчасти Case IH 2588 (80.175.05) - AUGERS - GRAIN TANK, LOWER (80) - CROP STORAGE/UNLOADING

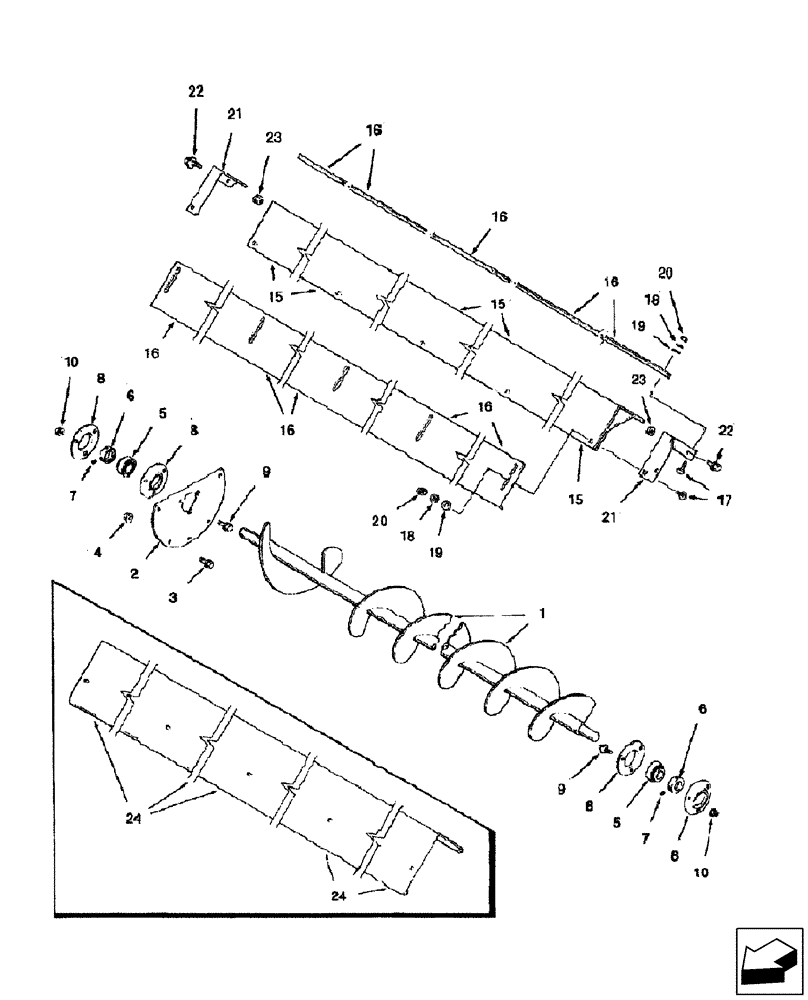

Схема запчастей Case IH 2588 - (80.175.05) - AUGERS - GRAIN TANK, LOWER (80) - CROP STORAGE/UNLOADING
16
18
18
9
7
16
24
20
19
24
2
1
5
15
16
22
8
10
17
16
23
9
20
21
15
23
21
16
22
6
16
8
7
19
5
8
6
15
4
8
0
3

Артикул

Название

Примечание

Количество

1

87617556

AUGER

Grain Tank, Lower

2шт.

2

192789C1

RETAINER

2шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

9шт.

3

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

1шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

5

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

4шт.

6

38260

COLLAR

Incl Ref 7

4шт.

7

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1шт.

8

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

8шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

15

1321082C5

COVER

1шт.

16

1321089C1

PLATE

3шт.

17

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

15шт.

18

492-11031

LOCK WASHER,5/16"

15шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

15шт.

20

425-105

NUT,5/16"-18, G5

15шт.

21

1321242C1

SUPPORT

4шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

23

231-5146

FLANGE NUT,3/8"-16

8шт.

24

1979940C3

COVER

1шт.

Выбрано товаров: 21
