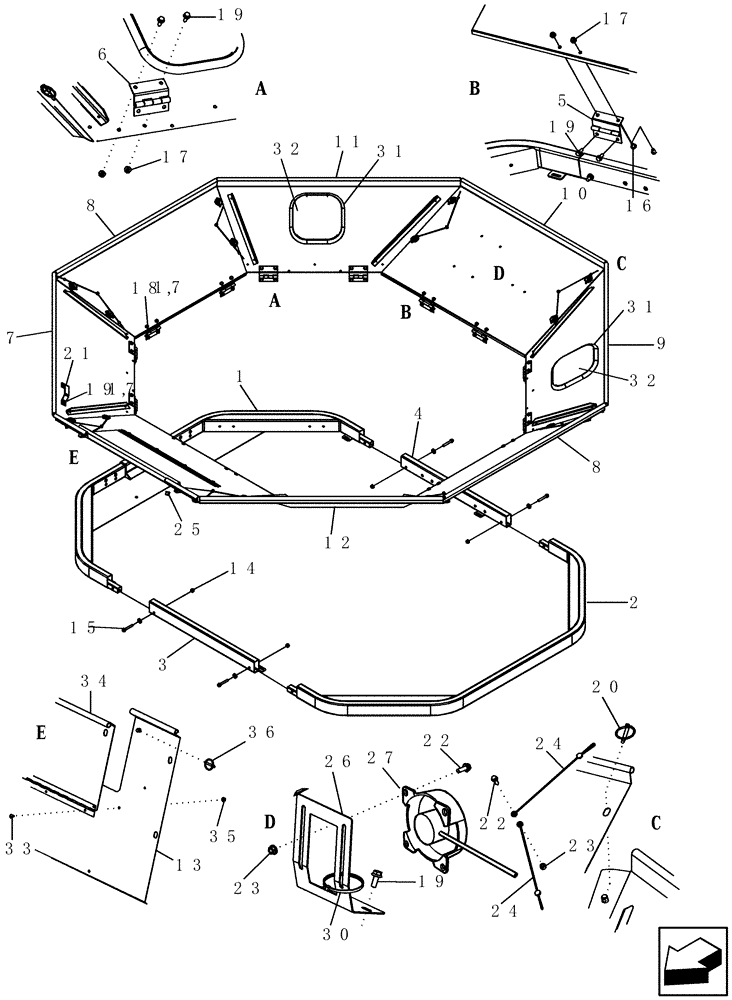

Запчасти Case IH 2588 (80.154.02) - GRAIN TANK EXTENSIONS, UPPER (80) - CROP STORAGE/UNLOADING

1

87556571

FRAME ASSY

Extension

1шт.

2

87556572

FRAME ASSY

Extension

1шт.

3

87556573

FRAME ASSY

Extension

1шт.

4

87556574

FRAME ASSY

Extension

1шт.

5

87593737

HINGE

8шт.

6

87552106

EXTENSION

Hinge

8шт.

7

87534610

DOOR ASSY.

Extension

1шт.

8

87534600

DOOR ASSY.

Extension

2шт.

9

87534591

DOOR ASSY.

Extension

1шт.

10

87598270

DOOR ASSY.

Extension

1шт.

11

87534598

DOOR ASSY.

Extension

1шт.

12

87534588

DOOR ASSY.

Extension

1шт.

13

87550659

DOOR ASSY.

Access, Extension

1шт.

14

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

8шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

52шт.

18

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

8шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

52шт.

20

270184

LINCH PIN,6.35mm OD

16шт.

21

87686906

LATCH

Door

1шт.

22

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

10шт.

23

231-1444

NUT,1/4"-20, GB

8шт.

24

87553822

CABLE

18шт.

25

87553838

PLUG

2шт.

26

87560154

BRACKET

Sensor Extension

1шт.

27

87346939

SENSOR

Grain Tank Level, Serial Range: -HAJ300402

1шт.

28

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

27

87701176

SENSOR

Grain Tank Level, Start Serial: HAJ300402

1шт.

29

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

Not Shown

4шт.

30

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

2шт.

31

87562448

GLASS

Moulding

2шт.

32

87561180

GLASS

2шт.

33

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

4шт.

34

87550661

DOOR ASSY.

Extension Access

1шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

36

270184

LINCH PIN,6.35mm OD

2шт.

37

87301815

RIVET

Rivet Nut 5/16-18 Thread

16шт.
