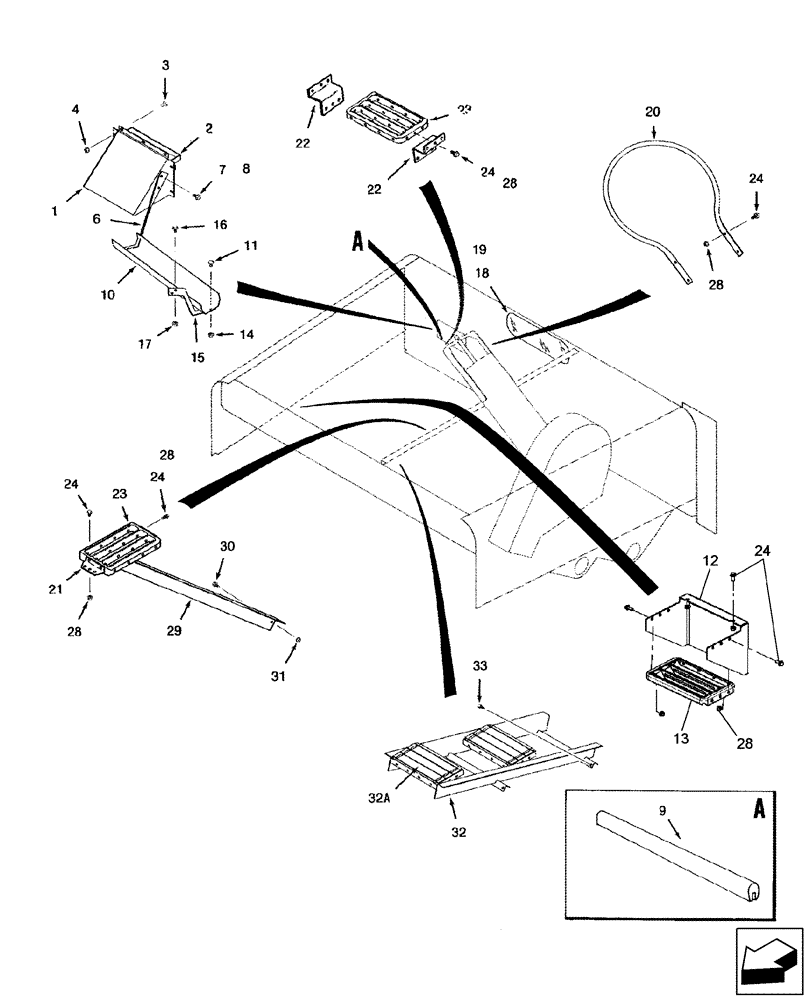

Запчасти Case IH 2588 (80.150.12) - GRAIN TANK - STEPS AND SAMPLE TROUGH (80) - CROP STORAGE/UNLOADING

1

115730A1

SHEET

1шт.

2

185668A1

SUPPORT

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

7шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

6

124001A1

SUPPORT

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

9

126046A1

GASKET,287.02mm L

292 mm (11-1/2"), Cut From P/N 1330108CX

1шт.

10

123977A2

BOTTOM

1шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

12

87540683

BRACKET

Step

1шт.

13

1531337C1

STEP

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

15

124000A1

SUPPORT

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

18

120550A1

GLASS

1шт.

19

123579A1

STRIP

1524 mm (60"), Cut From P/N 198131C2

1шт.

20

129073A1

HANDLE

1шт.

21

129077A3

SUPPORT

2шт.

22

141410A1

SUPPORT

2шт.

23

1531337C1

STEP

2шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

24шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

29

129079A2

SUPPORT

1шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

32

129080A3

LADDER

Incl Ref 32A

1шт.

32a

1531337C1

STEP

2шт.

33

275-14712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

4шт.

34

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25") x 51 mm (2"), Not Shown

8шт.
