Запчасти Case IH 2588 (80.101.12) - GRAIN ELEVATOR - HOUSING AND BOOT (80) - CROP STORAGE/UNLOADING

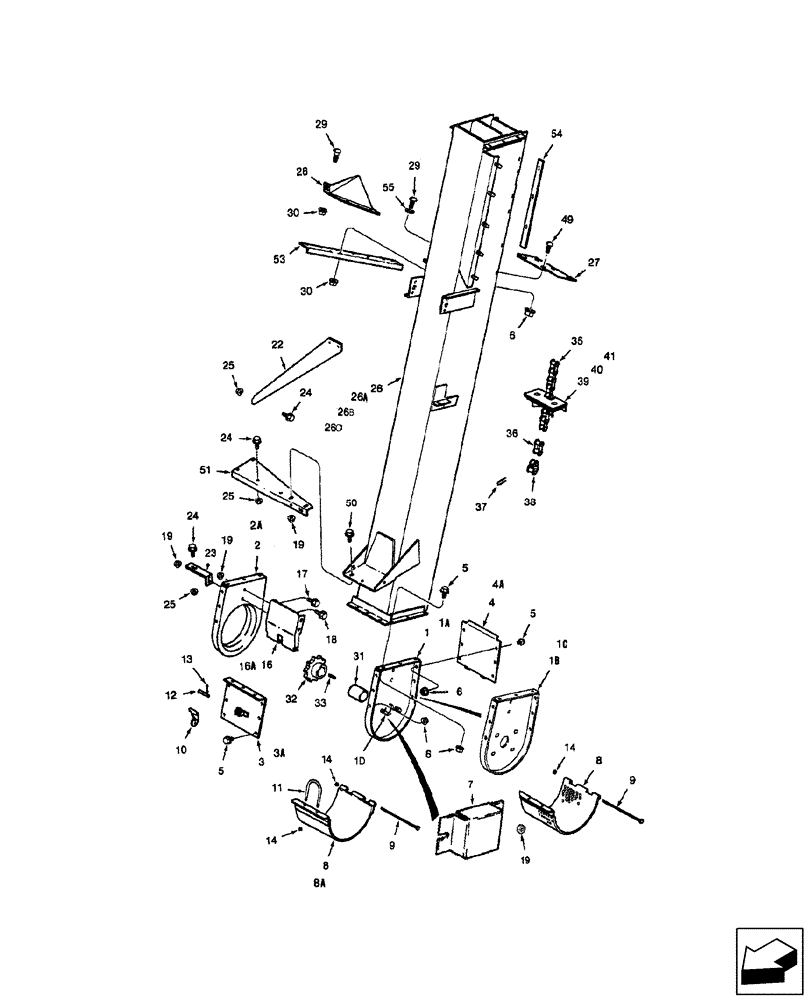

Схема запчастей Case IH 2588 - (80.101.12) - GRAIN ELEVATOR - HOUSING AND BOOT (80) - CROP STORAGE/UNLOADING
25
6
25
2
32
12
8
3
13
16
31
2a
10
24
1
8a
14
26c
38
22
28
55
9
30
53
36
41
49
4a
17
1c
1d
6
40
24
39
33
30
37
35
14
19
5
16a
26a
9
5
11
24
29
19
54
4
19
19
3a
7
1a
1b
51
25
23
18
14
29
27
6
26b
5
50
26
8

Артикул

Название

Примечание

Количество

1

176175A2

SIDE PLATE

Outer, If Used

1шт.

1a

325508A1

SIDE PLATE

Outer, Extended Wear, If Used

1шт.

1b

223237A1

SIDE PLATE

Outer, If Used

1шт.

With Yield Monitor

1шт.

With Advanced Farming System

1шт.

1c

251473A2

SIDE PLATE

Outer, Extended Wear, Incl 1D, If Used

1шт.

With Yield Monitor

1шт.

With Advanced Farming System

1шт.

1d

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

4шт.

2

1318584C2

SUPPORT

Inner

1шт.

2a

249260A1

SUPPORT

Inner, Extended Wear

1шт.

3

1317437C1

COVER

Rear

1шт.

3a

249262A1

COVER

Rear, Extended Wear

1шт.

4

1317439C1

COVER

Front

1шт.

4a

249264A1

COVER

Front, Extended Wear

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

7

177208A1

COVER

Australia Only

1шт.

8

1317430C1

DOOR

Non-perforated

1шт.

8

1317842C1

DOOR

Perforated

1шт.

8a

249270A1

DOOR

Non-perforated, Extended Wear

1шт.

9

424-5152

BOLT,Hex, 5/16" - 18 x 9-1/2", Gr 2

1шт.

10

155909C1

LATCH

1шт.

11

87302569

U-BOLT

5/16"

1шт.

12

439-1420

HEADED PIN,1/4" x 1 1/4"

1шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

14

231-4115

NUT,5/16"-18, GB

3шт.

16

1318590C3

SUPPORT

Grain

1шт.

16a

249266A1

DEFLECTOR

Grain, Extended Wear

1шт.

17

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

18

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Not Shown

4шт.

22

1317362C5

SUPPORT

Lower

1шт.

23

186729C2

SUPPORT

1шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

25

231-5146

FLANGE NUT,3/8"-16

5шт.

26

1317456C6

ELEVATOR TUBE,Housing Assembly

1шт.

26a

249268A4

HOUSING

Extended Wear

1шт.

26b

367310A5

HOUSING

AFS, Extended Wear

1шт.

26c

367308A5

HOUSING

AFS

1шт.

27

303955A1

PLATE

1шт.

28

1317699C1

SUPPORT

Inner

1шт.

29

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

16шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

31

176181A2

SPACER

1шт.

32

143960A1

SPROCKET

9 T, Clean Grain

1шт.

33

Q1443

KEY,5/16" Sq x 1 1/2", Par

1шт.

35

87313692

CHAIN,CA550, 154 Links x 41.4mm = 6375.6mm

Incl Refs 35A, 40 (38), 41 (76)

1шт.

35a

NSS

NOT SOLD SEPARAT

CHAIN ASSY, Incl Refs 36 - 38, 38A, 38B

1шт.

36

241-15113

LINK,41.4mm Pitch

No. C550, 1-5/8" P

1шт.

37

23442R1

PIN,2.36mm OD

S Type, No. 550

2шт.

38

241-18113

LINK,41.4mm Pitch

Offset, No. C550, 1-5/8" P

1шт.

38a

NSS

NOT SOLD SEPARAT

LINK, Attaching

38шт.

38b

241-12113

LINK,Chain, 41.4mm Pitch

No. C550

113шт.

39

1317614C93

RUBBER FLIGHT,C550, 2 Links x 41.4mm = 82.8mm

ASSY, Incl Refs 36 (2), 38A (1), 40, 41

38шт.

40

1318493C2

RUBBER FLIGHT

1шт.

41

185053C1

RIVET

2шт.

50

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

51

192223C2

BRACKET

1шт.

53

1317475C1

BRACKET

LH

1шт.

54

1321155C1

SPACER

1шт.

55

495-81121

WASHER,.344" x 1 1/2" x .060"

7шт.

Выбрано товаров: 63
