Запчасти Case IH 2588 (74.140.10) - TAILINGS AUGER TROUGH (74) - CLEANING

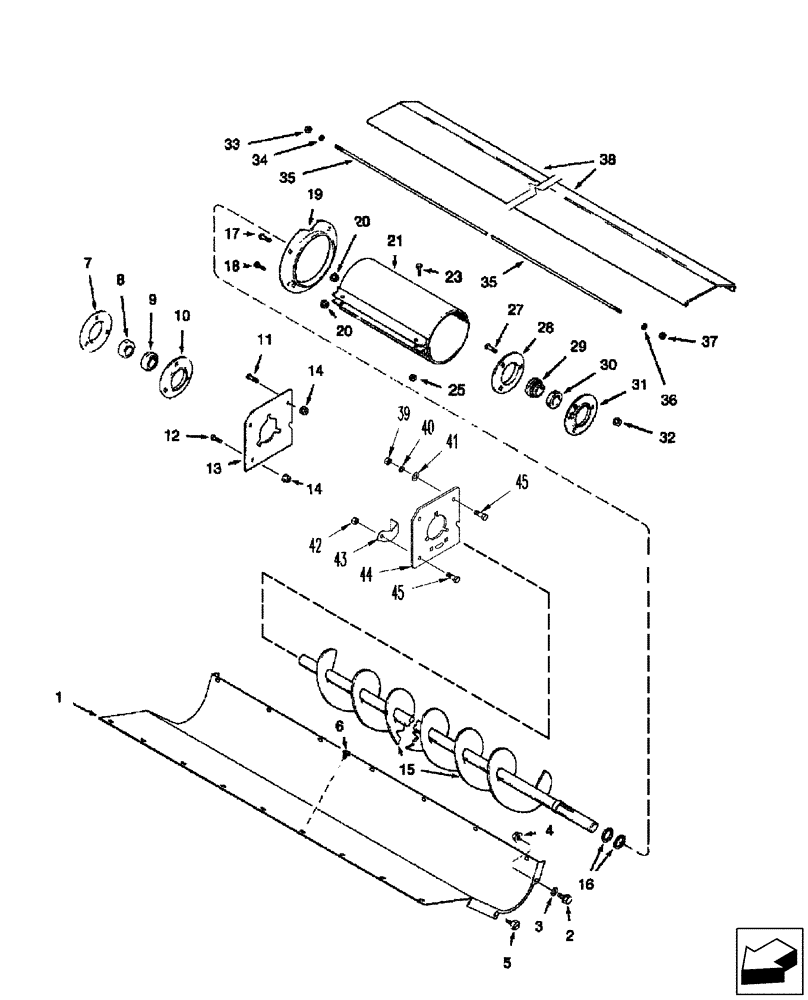

Схема запчастей Case IH 2588 - (74.140.10) - TAILINGS AUGER TROUGH (74) - CLEANING
3
38
16
37
18
12
14
23
17
19
34
43
1
10
45
2
27
7
20
41
5
6
9
32
25
35
45
29
31
13
30
35
21
44
40
26
14
20
8
39
36
11
15
4
42
33

Артикул

Название

Примечание

Количество

1

1346938C2

TROUGH

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

3

495-11034

WASHER,5/16", SAE

2шт.

4

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

4

231-4145

NUT,5/16"-18, GB

8шт.

5

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16" x 13/16"

8шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

7

87430514

FLANGE

W/Fitting

1шт.

8

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

W/Set Screw

1шт.

9

156011C92

BALL BEARING

1шт.

10

86636169

FLANGED BEARING

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

12

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16" x 13/16"

1шт.

13

183158C1

COVER

1шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

15

144028A2

AUGER

1шт.

16

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

1шт.

17

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

1шт.

18

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

5/16" x 13/16"

1шт.

19

199665A2

FLANGE

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

21

199700A3

TUBE

Non-perforated

1шт.

21

240811A2

TUBE

Perforated (Not Shown)

1шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

23

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

25

231-4115

NUT,5/16"-18, GB

3шт.

25

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

27

477-73832

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"

1шт.

27

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

3шт.

27

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

28

86636169

FLANGED BEARING

Grooved, RH

2шт.

29

156011C92

BALL BEARING

2шт.

30

38767

COLLAR,Lock, 31.9mm ID x 44mm OD 15.9mm Thk

W/Set Screw

2шт.

31

87430514

FLANGE

W/Fitting

2шт.

32

231-5146

FLANGE NUT,3/8"-16

9шт.

33

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

34

492-11031

LOCK WASHER,5/16"

1шт.

35

185197C1

ROD

1шт.

36

495-11034

WASHER,5/16", SAE

1шт.

37

425-105

NUT,5/16"-18, G5

1шт.

38

185196C1

DOOR

1шт.

39

129-409

WING NUT,1/4"-20

1шт.

40

492-11025

LOCK WASHER,1/4"

1шт.

41

495-11028

WASHER,1/4", SAE

1шт.

42

231-5344

FLANGE NUT,Flg, 1/4"-20

1шт.

43

429985A2

COVER

Plate, Grain Cleanout

1шт.

44

430002A1

PLATE

Cover

1шт.

45

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

2шт.

46

446246A1

STRAP

Not Shown

2шт.

Выбрано товаров: 49
