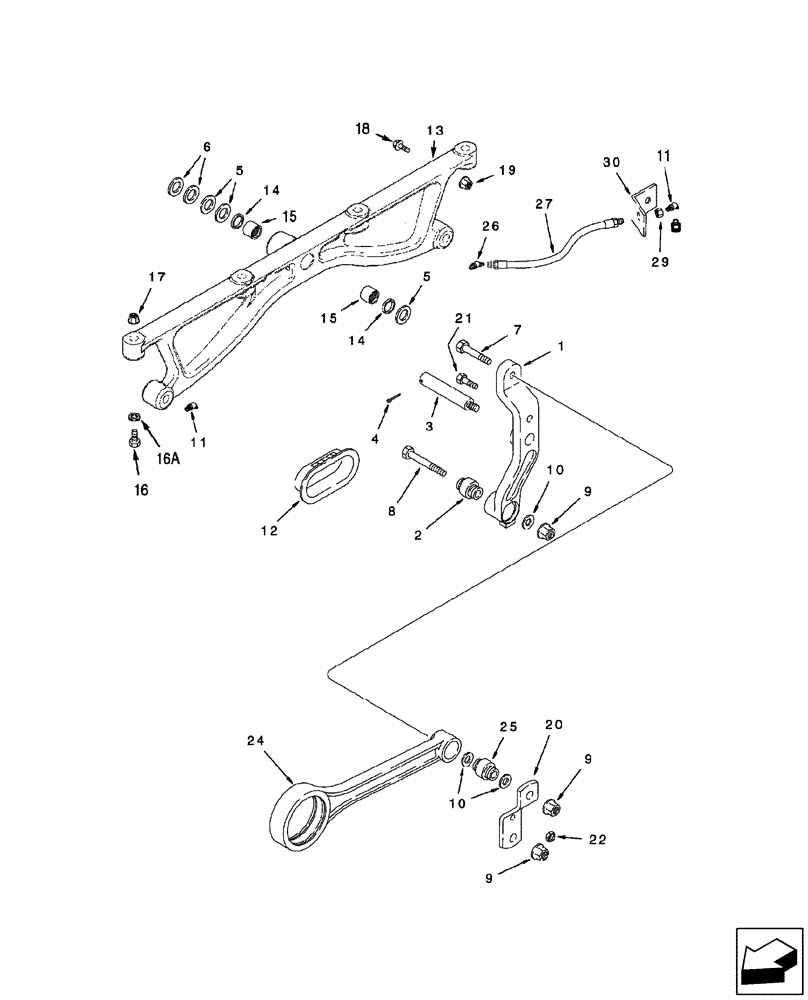

Запчасти Case IH 2588 (74.101.19) - CHAFFER - DRIVE HANGER (74) - CLEANING

1

87313325

LEVER

Incl Refs 2, 3, Serial Range: -HAJ303741

2шт.

1

87671725

LEVER

Incl Refs 2, 3, Start Serial: HAJ303741

2шт.

2

1330323C2

BUSHING

5/8" x 1-1/2" x 2-57/64"

1шт.

3

1979251C1

SHAFT

1шт.

4

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

5

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

6шт.

6

495-81056

WASHER,29/32" x 1 1/2" x 3/64

4шт.

7

87306801

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

2шт.

8

426-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 8

2шт.

9

232-41110

NUT,5/8"-11, GC

4шт.

9

232-42410

LOCK NUT,5/8"-11, GC

2шт.

10

496-11066

WASHER,21/32" x 1 5/16" x .095", HDN

4шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

LH

2шт.

12

1302644C2

SEAL

2шт.

352013A1

SUPPORT

Incl Refs 13 - 15, Serial Range: -HAJ304109

2шт.

87741795

SUPPORT ASSY.

Incl Refs 13 - 15, Start Serial: HAJ304109

2шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

14

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

2шт.

15

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

, Serial Range: -HAJ304109

2шт.

15

551139R91

BEARING, NEEDLE

, Start Serial: HAJ304109

3шт.

16

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

4шт.

16a

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

4шт.

17

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

20

87323537

BRACKET

2шт.

21

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

22

87301492

SERRATED NUT,Flg, USR, 1/2"-13, G8

4шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

Not Shown

2шт.

24

87582203

ARM ASSY.

Incl Ref 25

2шт.

25

87376924

BUSHING,16mm ID x 50.8mm OD x 76.2mm L

1шт.

26

219-418

ADAPTER,1/4"-1/8 NPTF

RH Front

1шт.

27

937773R91

HOSE,3.56 mm ID x 304.80 mm,

3.56 mm ID x 304.80 mm

1шт.

29

F53473

LOCK NUT,1/8-27 NPSM

1/8" PT

1шт.

30

178960C1

BRACKET

1шт.
